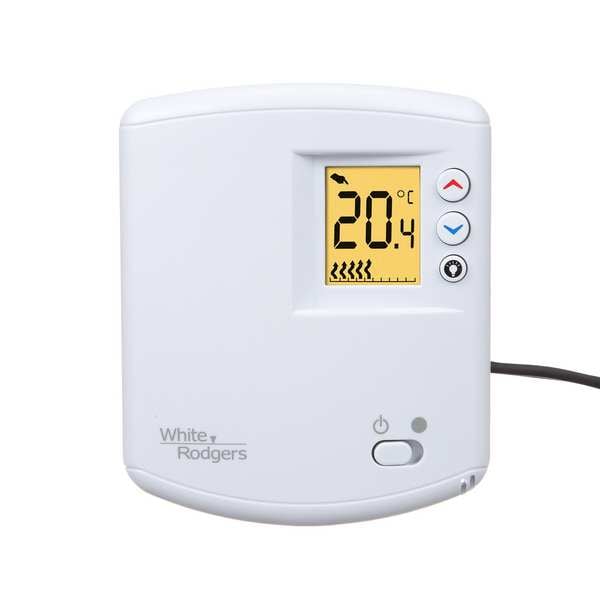

Line Voltage Thermostat, Open on Rise, Vertical, 45 Degrees to 90 Degrees F, SPST, 120V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120V AC |
| Sensor Type | Thermistor |
| Differential | 1 Degrees F |
| Display Type | Digital |
| Thermostat Control Range | 45 to 90 deg F |
| Mounting Location | Vertical |
| Switch Type | SPST |
| Watts | 2000/4000W |
| Color | White |
| Width | 4-3/16 in |
| Height | 5 in |
| Thermostat Programmable | No |
| Depth | 1-1/4 in |
| Temp. Sensitivity | 0.2 deg F |
| Control Range | 45 to 90 deg F |
| Thermostat Item | Line Voltage Thermostat |
| Includes | Mounting Hardware |
| Item | Line Voltage Thermostat |
| Mounting Type | Vertical |
| Thermostat Voltage | 120 to 240 V AC |
| Thermostat Heating/Cooling | Heating |
| Number of Switches | 1 |
| Number of Stages | 1 |
| Standards | CSA |
| Full Load Amps @ 240VAC | 16.7 A |
| Full Load Amps @ 120VAC | 16.7 A |
| Thermostat Switch Type | SPST |
| Thermostat Type | Line Voltage |
| Contact Rating Resistive @ 240V | 16.7 A |
| Mounting | Vertical |
| Contact Rating Resistive @ 120V | 16.7 A |
| For Use With | Electric Heating Systems up to 4000 Watts |
| Application | Heat Only |
| Control Type | Slide Switch |
| Key Pad Lockout | No |
| System Settings | Heat-Off |
| Backlit Screen | No |
| Maximum Operating Humidity | 85% |
| Minimum Operating Temperature | 32 deg F |
| Minimum Control Temperature | 45 deg F |
| Housing Color | White |
| Full Load Amps @ 240V AC | 16.7 A |
| Housing Material | Plastic |
| Temperature Differential | 1 Degrees F |
| Overall Height | 5 in |
| Maximum Control Temperature | 90 deg F |
| Temperature Sensitivity | 0.2 deg F |
| Compatible System Type | Electric Heating |
| Temperature Readout | Yes |
| Temperature Scale | Fahrenheit, Celsius |
| Overall Depth | 1-1/4 in |
| Stages | 1H |
| Differential Type | Adjustable |
| Includes Positive Off | Yes |
| Number of Heating Stages | 1 |
| Frequency | 50 Hz, 60 Hz |
| Operating Temperature Range | 32 to 99 deg F |
| Mounting Direction | Vertical |
| Switch Type/Action | Open, SPST on Rise |
| Fan Settings | No Fan Setting |
| Maximum Operating Temperature | 99 deg F |
| Temperature Control Range | 45 to 90 deg F |
| Overall Width | 4-3/16 in |
| Country of Origin (subject to change) | Viet Nam |
| Package Quantity | 1 |
