14.0000" OAL, Clamp
| Minimum Bore Diameter (Decimal Inch) | 1.4700 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 3.7500 |
| Toolholder Style | MWLNR |
| Tool Material | Steel |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | WN..432 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Trigon |
| Insert Included | No |
| Rake | Negative |
| Rake Angle | -14.00 |
| Lead Angle | -5 |
| Series | A-MWLN |
| Insert Inscribed Circle (Inch) | 1/2 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Compatible Insert Thickness (mm) | 4.76 |
| Multi-use Tool | Yes |

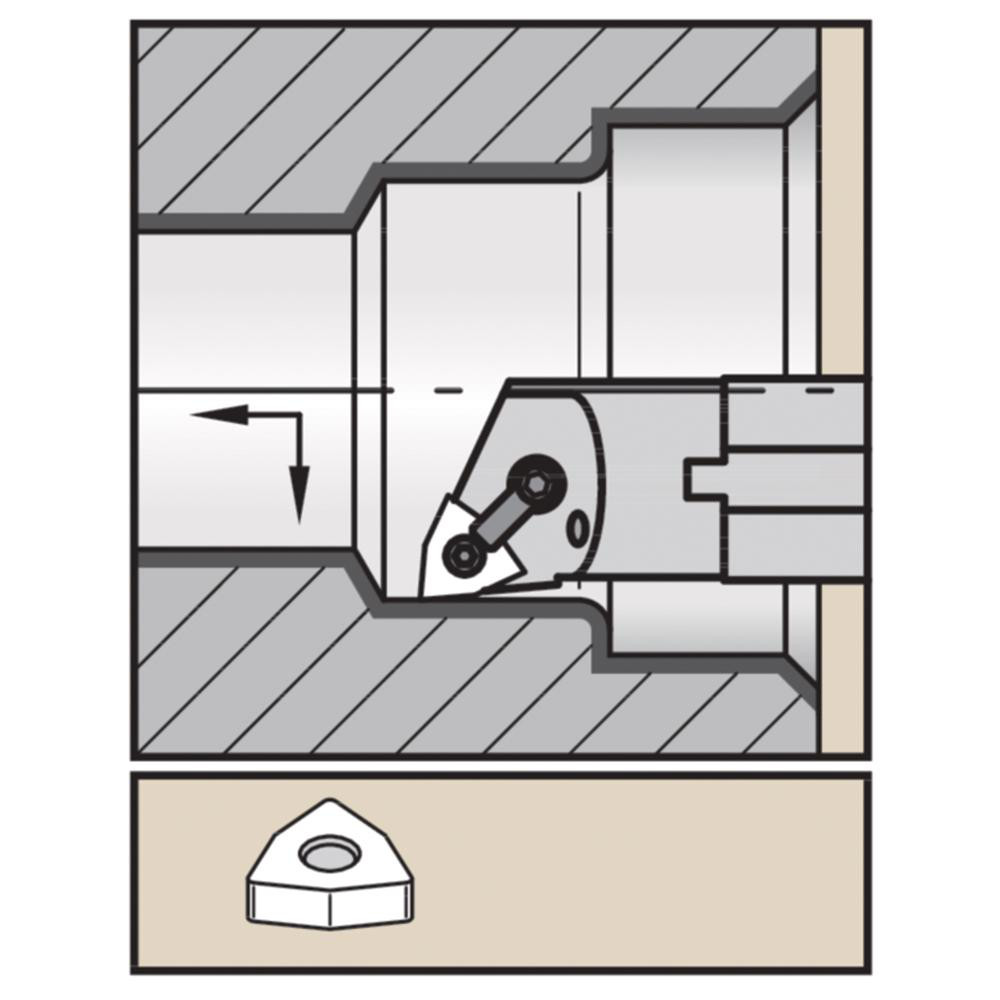

| Cutting Tool Application | Boring |

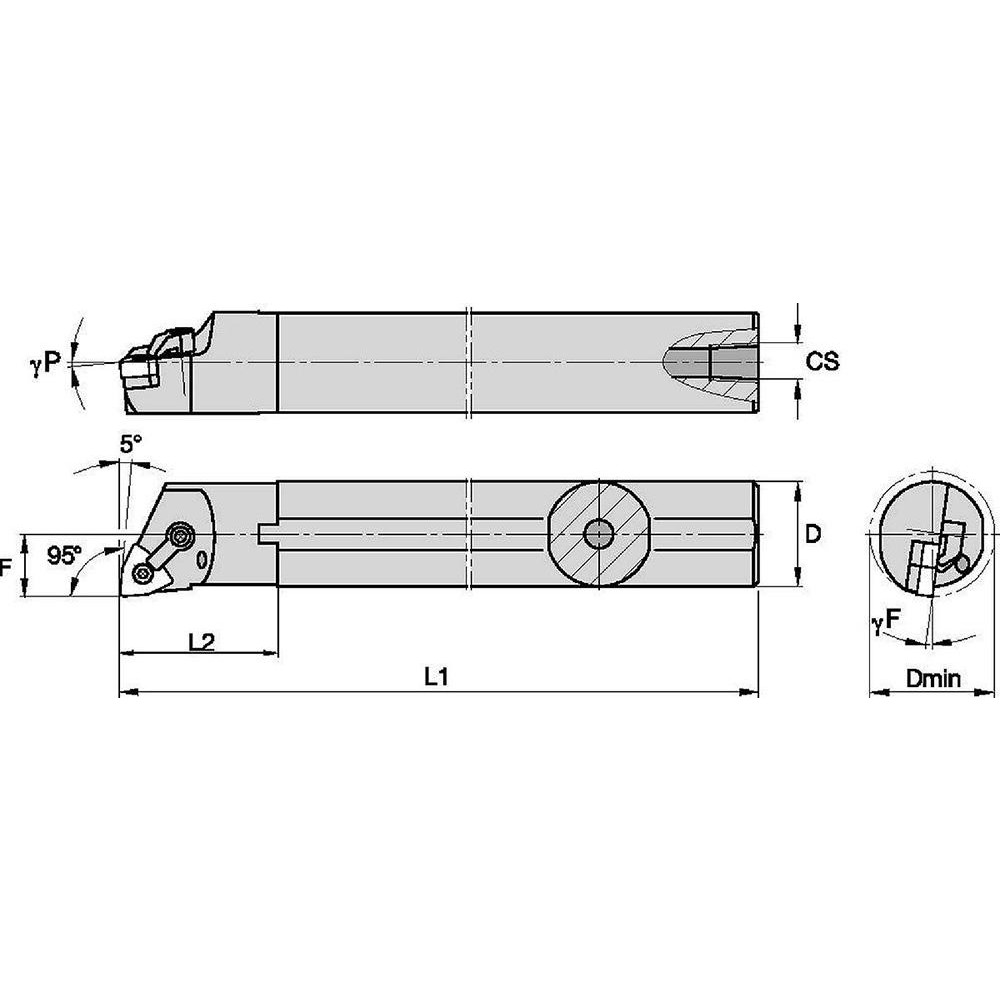

| Back of Bar to Cutting Edge (Decimal Inch) | 1.3900 |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Primary Workpiece Material | Universal |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Manufacturers Catalog Number | A20UMWLNR4 |
| Radial Rake | -5 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 02774131 |
