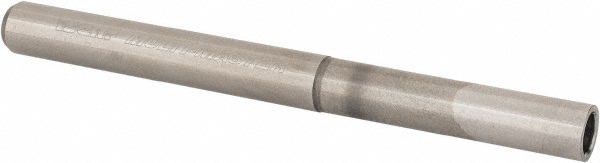

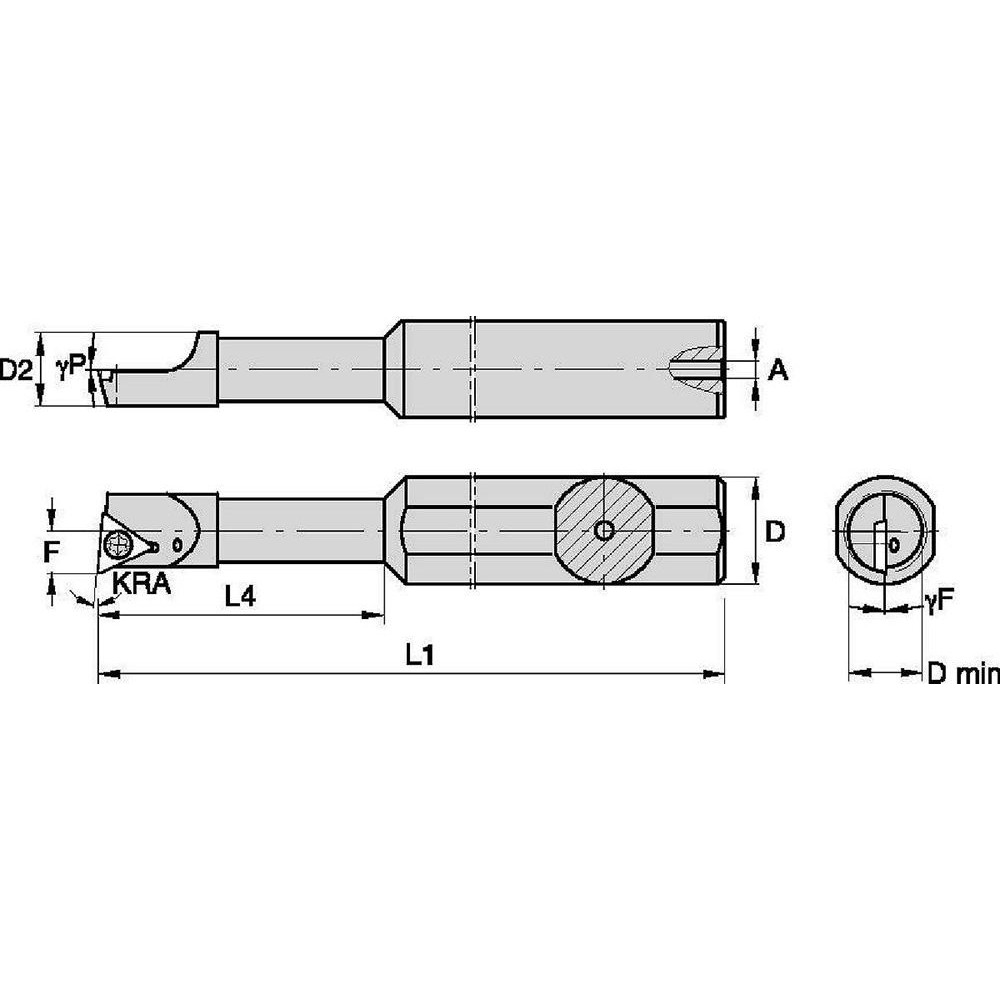

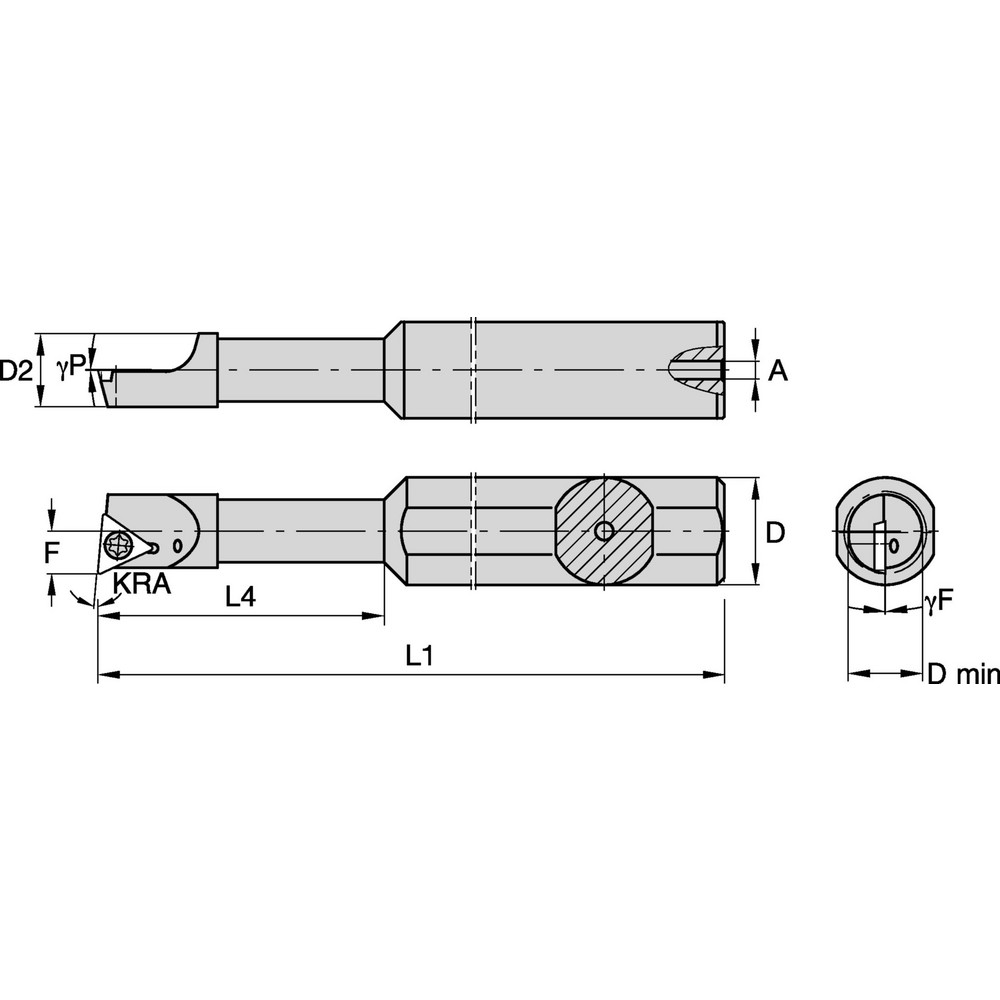

4.0000" OAL, Screw
| Minimum Bore Diameter (Decimal Inch) | 0.3580 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.0000 |
| Maximum Bore Depth (Inch) | 1 |
| Toolholder Style | FSBI |
| Tool Material | Steel |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Compatible Insert Size Code | TD..130805 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Positive |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Series | FSBI STEPPED |
| Insert Inscribed Circle (Decimal Inch) | 0.1598 |
| Insert Inscribed Circle (mm) | 4.06 |
| Compatible Insert Thickness (Decimal Inch) | 0.0469 |
| Compatible Insert Thickness (mm) | 1.19 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4995 |
| Center to Cutting Edge (Decimal Inch) | 0.1870 |
| Primary Workpiece Material | Universal |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.3210 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0469 |
| Insert Thickness (Inch) | 3/64 |
| Coolant Hole Diameter (Decimal Inch) | 0.0600 |
| Manufacturers Catalog Number | FSBI31262515R |
| Radial Rake | 5 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 99710618 |
