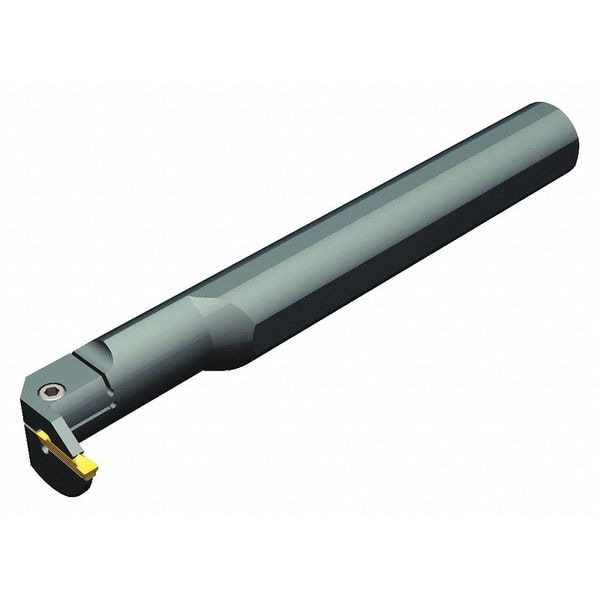

Indexable Grooving and Parting Toolholder, A20SWMTER0619N, 10 in L, High Speed Steel
| Item | Indexable Grooving and Parting Toolholder |
|---|---|
| Overall Length | 10 in |
| Shank Material | High Speed Steel |
| Insert Shape | Grooving |
| ANSI Code | A20SWMTER0619N |
| Lead Angle | 0 Degrees |
| Type | Clamping |
| Cutting Direction | Right Hand |
| Shank Dia. | 31-3/4 in |
| Rake | -3 Degrees Radial;0 Degrees Axial |
| Cutting Location | Internal |
| Toolholder Style | WMT |
| Cutting Application | Inside Diameter Grooving |
| ISO Number | A20SWMTER0619N |
| Series | WMT |
| Depth of Cut | 19 mm |
| Insert Holding Type | Clamp |
| Coolant Fed | Coolant Through |
| Max. Bore Depth | 64 mm |
| Max. Grooving Width | 1/4 in |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
