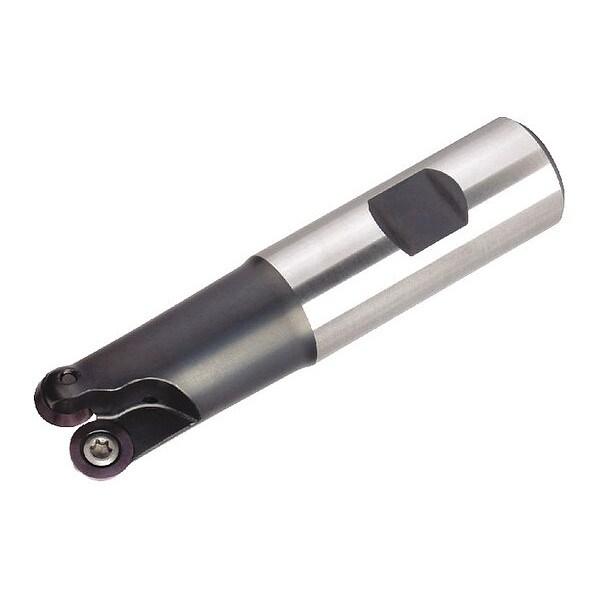

Indexable Profiling End Mill, M100 Series, High Speed Steel, 0.1969 in Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | M100 |
| Overall Length | 6.28 in |
| Depth of Cut | 0.1969 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Shank Dia. | 1 in |
| Insert Size | RD..1003M0T |
| Insert Shape | Round |
| ANSI Code | M100D075Z02W100RD10L628 |
| Side Cutting Edge Angle | 15 deg |
| Max. Cutting Dia. | 3/4 in |
| Coolant Fed | Coolant Through |
| Head Dia. | 3/4 in |
| Features | Anti-Rotation Feature for Top Security |
| Insert Inscribed Circle | 0.3937 in |
| Shank Length | 2.28 in |
| Shank Type - Machining | Weldon Flat |
| Cutting Application | 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End |
| Number of Inserts | 2 |
| Insert Style | RD |
| Number of Coolant Holes | 1 |
| Compatible Hardware | Insert Screw M3x0.6 x 6.5 T15, Torx Driver |
| Insert Holding Type | Screw |
| ISO Number | M100D075Z02W100RD10L628 |
| Head Projection Length | 4 in |
| Max. Speed | 26,000 rpm |
| Package Quantity | 1 |
