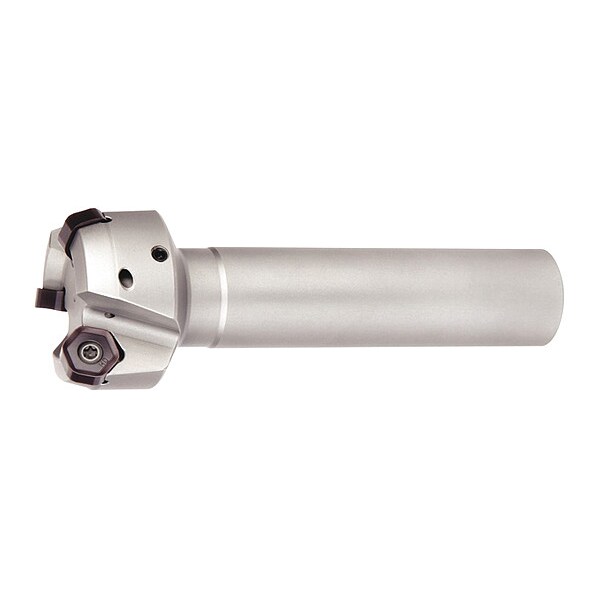

Indexable Profiling End Mill, M1200 Mini Series, High Speed Steel, 1.70mm Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | M1200 Mini |
| Overall Length | 130 mm |
| Depth of Cut | 1.7 mm |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Insert Size | 0704 |
| Shank Dia. | 25 mm |
| Insert Shape | 120 Degrees Hexagon |
| Rake | -7 Degrees Axial, -10.100 Degrees Radial |
| Cutting Application | Face Milling |
| Insert Style | HNGJ....ANENLD |
| Shank Length | 90 mm |
| ISO Number | M1200HF032Z04A25HN07L130 |
| Number of Coolant Holes | 1 |
| Number of Inserts | 4 |
| Coolant Fed | Coolant Through |
| Shank Type - Machining | Straight |
| Compatible Hardware | Flat Point Socket Set Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver |
| ANSI Code | M1200HF032Z04A25HN07L130 |
| Min. Cutting Dia. | 32 mm |
| Neck Dia. | 24.3 mm |
| Features | First Choice for Low Depth-of-Cut Face Milling, Maximum Number of Teeth per Diameter, Twelve Cutting Edges |
| Toolholder Style | HN0704 |
| Max. Speed | 17,600 rpm |
| Insert Holding Type | Screw |
| Max. Cutting Dia. | 46.14 mm |
| Package Quantity | 1 |
