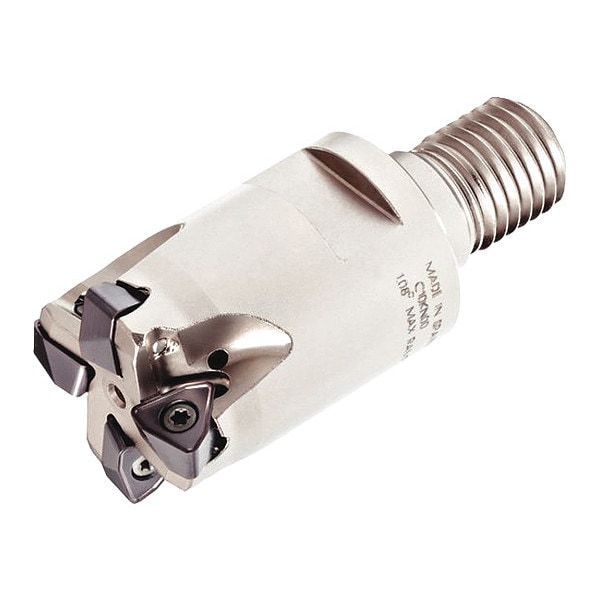

Indexable Profiling End Mill, M370 Series, High Speed Steel, 1.25mm Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | M370 |
| Overall Length | 57.01 mm |
| Depth of Cut | 1.25 mm |
| Material - Machining | High Speed Steel |
| Insert Size | WOEJ080412SRMH |
| Shank Dia. | 21 mm |
| Cutting Direction | Right Hand |
| Insert Shape | Trigon |
| Rake | -11 Degrees Axial, -10.4 Degrees Radial |
| Coolant Fed | Coolant Through |
| Features | Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges |
| Head Dia. | 1 in |
| Max. Cutting Dia. | 25.4 mm |
| Shank Length | 22.01 mm |
| Compatible Hardware | Insert Screw M3x0.5 x 9, Torx DT-9 |
| Insert Style | WOEJ-MH |
| Insert Inscribed Circle | 7.79 mm |
| Connection Size | M12 |
| Cutting Application | 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Roughing, Slotting: Square End |
| ANSI Code | M370D100Z03M12WO08 |
| Max. Speed | 46,000 rpm |
| Insert Holding Type | Screw |
| Number of Inserts | 3 |
| Number of Coolant Holes | 2 |
| ISO Number | M370D100Z03M12WO08 |
| Head Projection Length | 1.378 in |
| Package Quantity | 1 |
