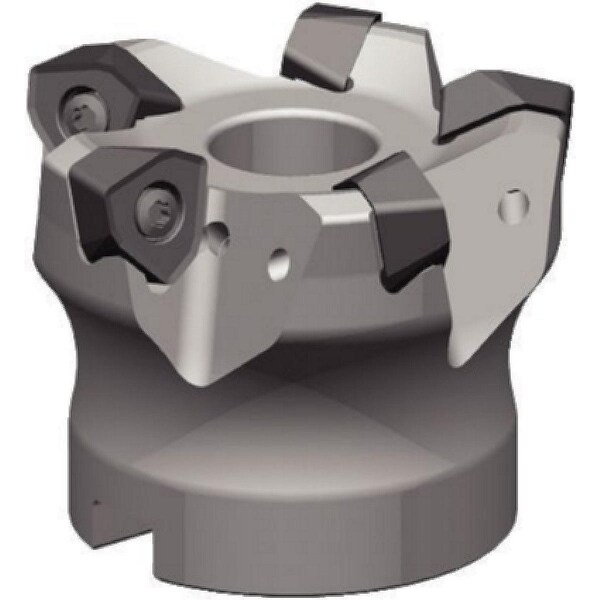

Indexable Profiling End Mill, M370 Series, High Speed Steel, 2.00mm Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | M370 |
| Overall Length | 50 mm |
| Depth of Cut | 2 mm |
| Material - Machining | High Speed Steel |
| Insert Size | 120713 |
| Cutting Direction | Right Hand |
| Rake | -11 Degrees Axial, 9 Degrees Radial |
| Number of Inserts | 4 |
| Coolant Fed | Coolant Through |
| Features | Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges |
| Insert Style | WOEJ R |
| Max. Cutting Dia. | 52 mm |
| Insert Holding Type | Screw |
| Cutting Application | 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End |
| ANSI Code | M370D52Z04WO12 |
| Max. Speed | 19,160 rpm |
| Compatible Hardware | Coolant Screw, Insert Screw M4x0.7 x 11.5 IP15, Torx Plus Drive Wrench DT15IP |
| ISO Number | M370D52Z04WO12 |
| Arbor Dia. | 22 mm |
| Hub Outside Dia. | 49 mm |
| Package Quantity | 1 |
