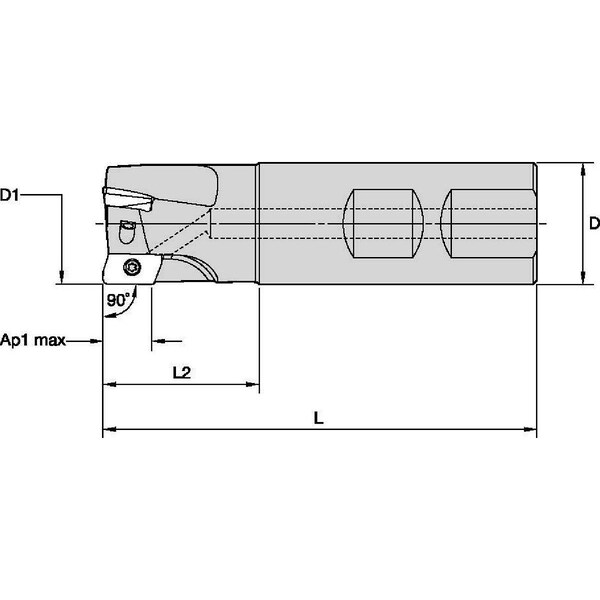

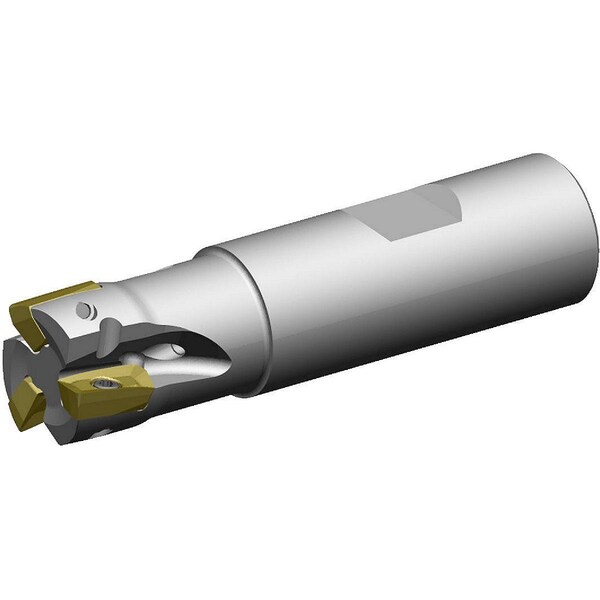

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.44mm Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | VSM11 |
| Overall Length | 96 mm |
| Depth of Cut | 11.44 mm |
| Material - Machining | High Speed Steel |
| Shank Dia. | 25 mm |
| Insert Size | 110408 |
| Cutting Direction | Right Hand |
| Insert Shape | 75 Degrees Parallelogram |
| Rake | 9.6 Degrees Axial, -6.567 Degrees Radial |
| Shank Length | 56 mm |
| Shank Type - Machining | Weldon Flat |
| Insert Holding Type | Screw |
| Number of Coolant Holes | 1 |
| Compatible Hardware | Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8 |
| Cutting Application | Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End |
| ANSI Code | VSM11D032Z04B25XD11 |
| Coolant Fed | Coolant Through |
| ISO Number | VSM11D032Z04B25XD11 |
| Min. Cutting Dia. | 32 mm |
| Head Projection Length | 40 mm |
| Toolholder Style | XDPT11 |
| Features | Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish |
| Neck Dia. | 29.45 mm |
| Insert Style | XD.T PD R |
| Max. Speed | 25,800 rpm |
| Side Cutting Edge Angle | 90 deg |
| Number of Inserts | 4 |
| Package Quantity | 1 |
