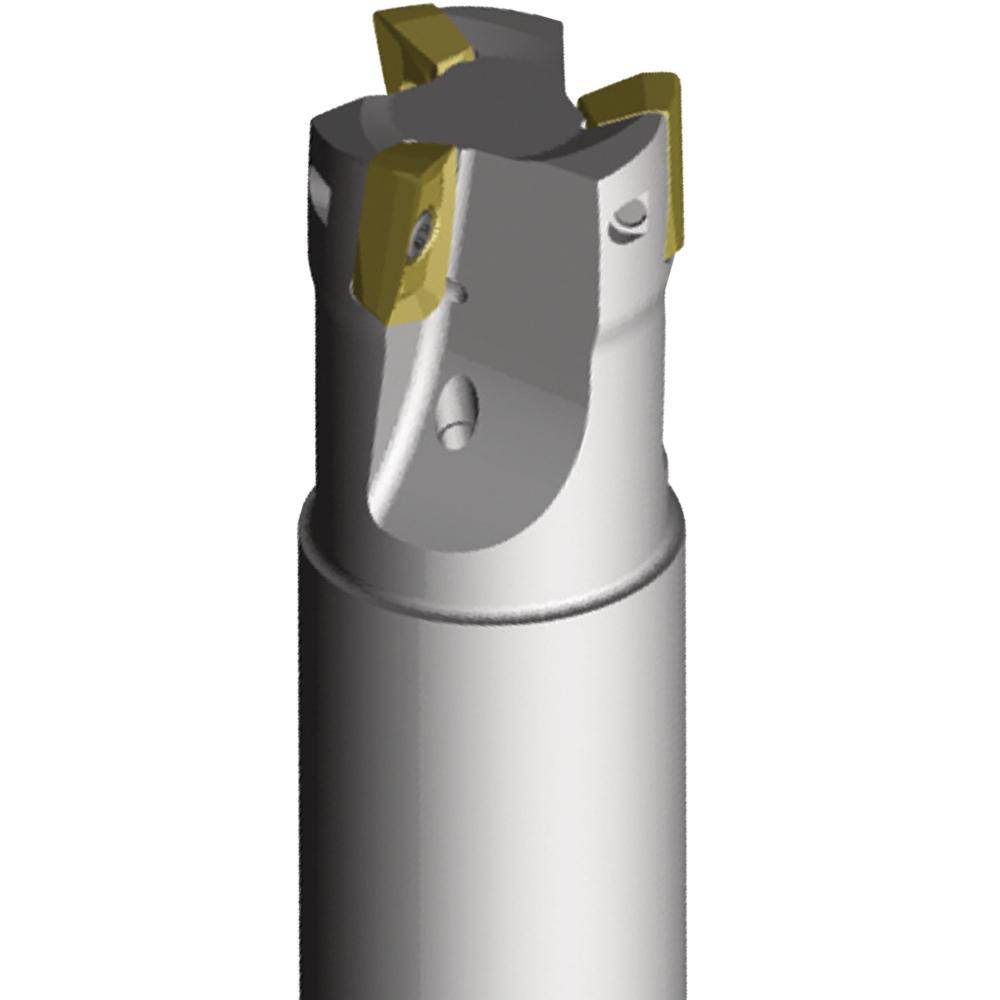

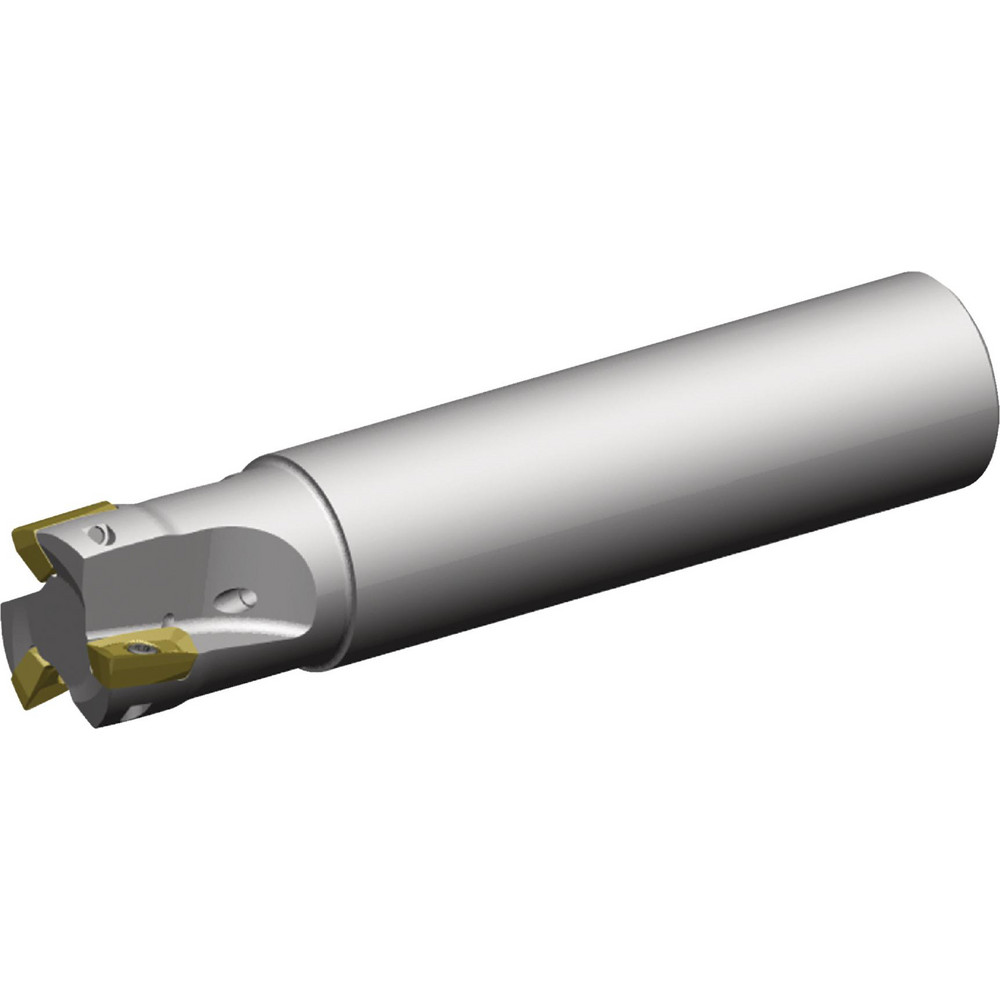

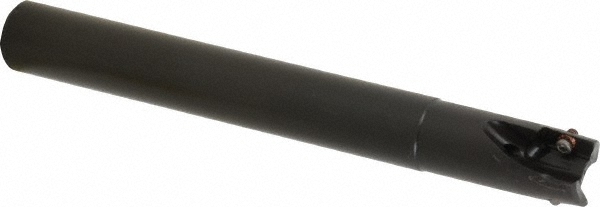

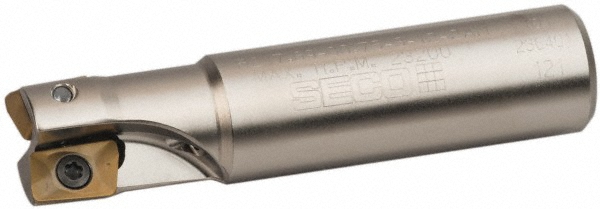

Uses (3) XD.T11.. Inserts, Through Coolant, 4.8" OAL
| Overall Length (Decimal Inch) | 4.8000 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.4535 |
| Maximum Depth of Cut (Inch) | 29/64 |
| Cutter Style | VSM |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 5.1 |
| Tool Material | Steel |
| Series | VSM11 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.5180 |
| Head Length (Inch) | 1-9/32 |
| Head Length (Decimal Inch) | 1.282 |
| Maximum RPM | 29900 |
| Tool Application | Pocketing; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (Decimal Inch) | 0.1970 |
| Rake | Negative (Radial); Positive (Axial) |
| Complete Insert Compatibility | XD.T11.. |
| Insert Compatibility | XD.T11.. |
| Hand of Holder | Right Hand |
| Rake Angle | -6.6 (Radial),8 (Axial) |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | VSM11D100Z03C075XD11L480 |
| Manufacturers Catalog Number | VSM11D100Z03C075XD11L480 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 1.2820 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 99506511 |
