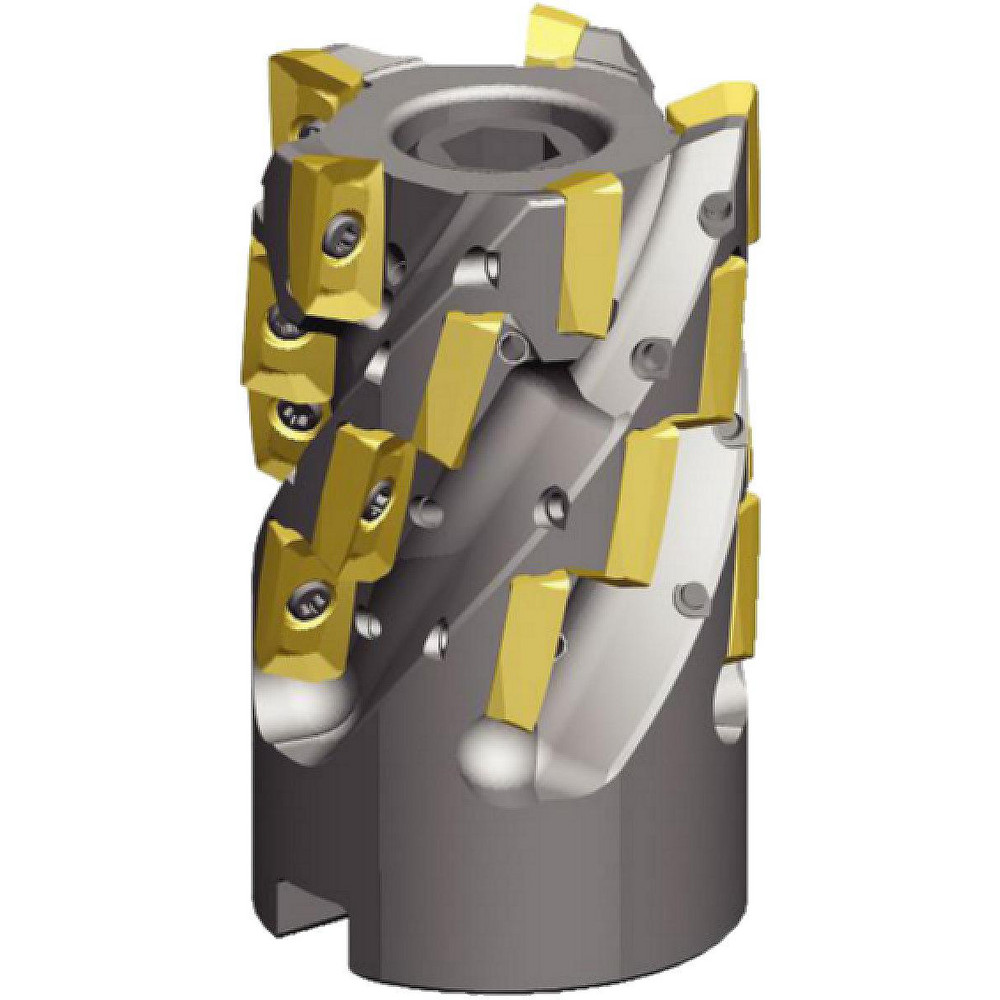

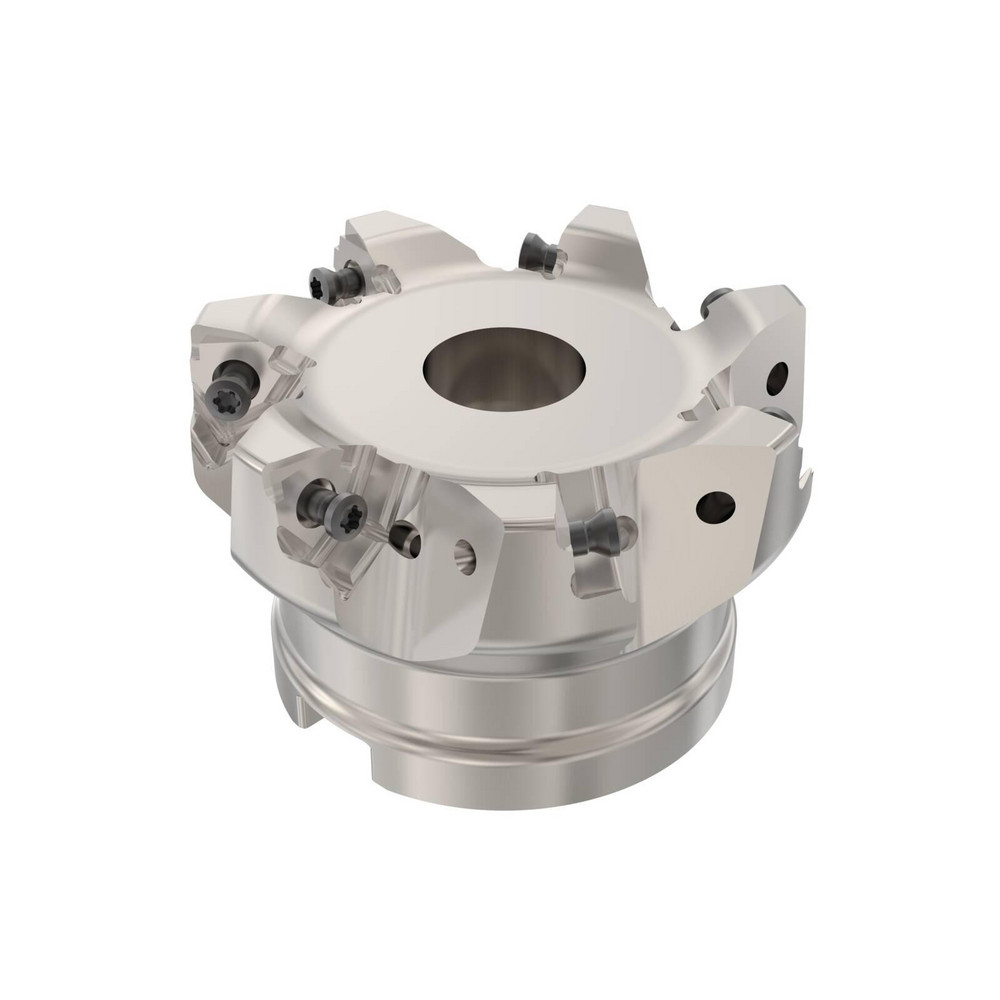

Uses 10 XNGU1004.. Inserts, Through Coolant, Series VSM490

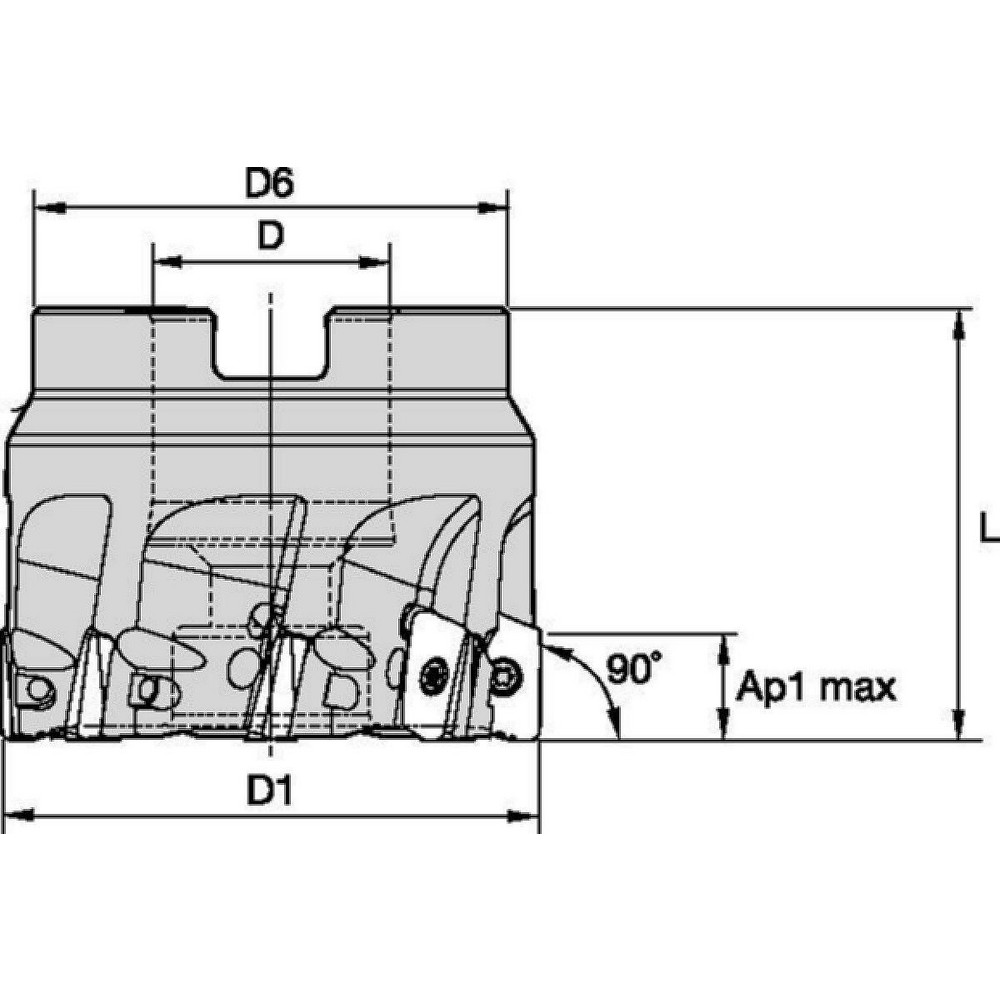

| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | XNGU1004.. |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Axial); Negative (Radial) |
| Rake Angle | -12.70 |
| Series | VSM490 |
| Maximum Ramping Angle | 0 |
| Maximum Body Diameter (Decimal Inch) | 2.9170 |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (mm) | 9.78 |
| Hub Diameter (Decimal Inch) | 2.1900 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (Decimal Inch) | 0.0980 |

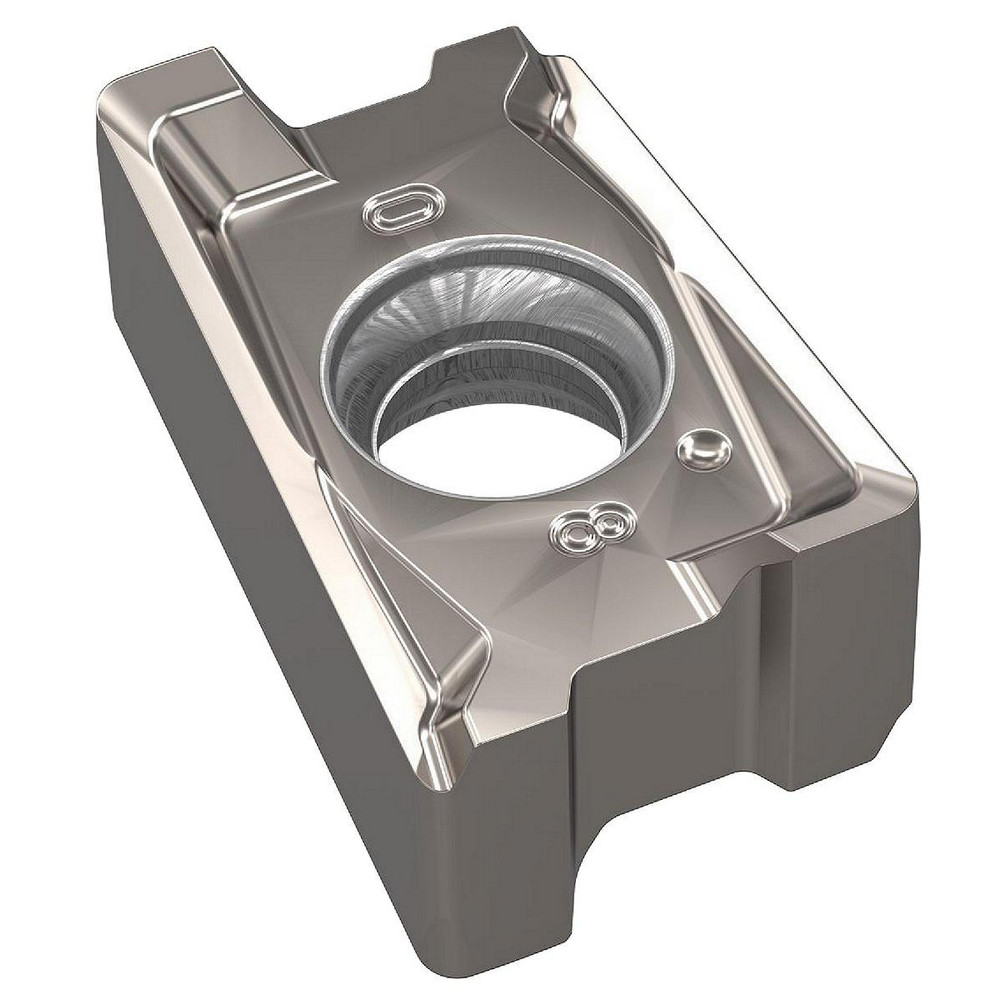

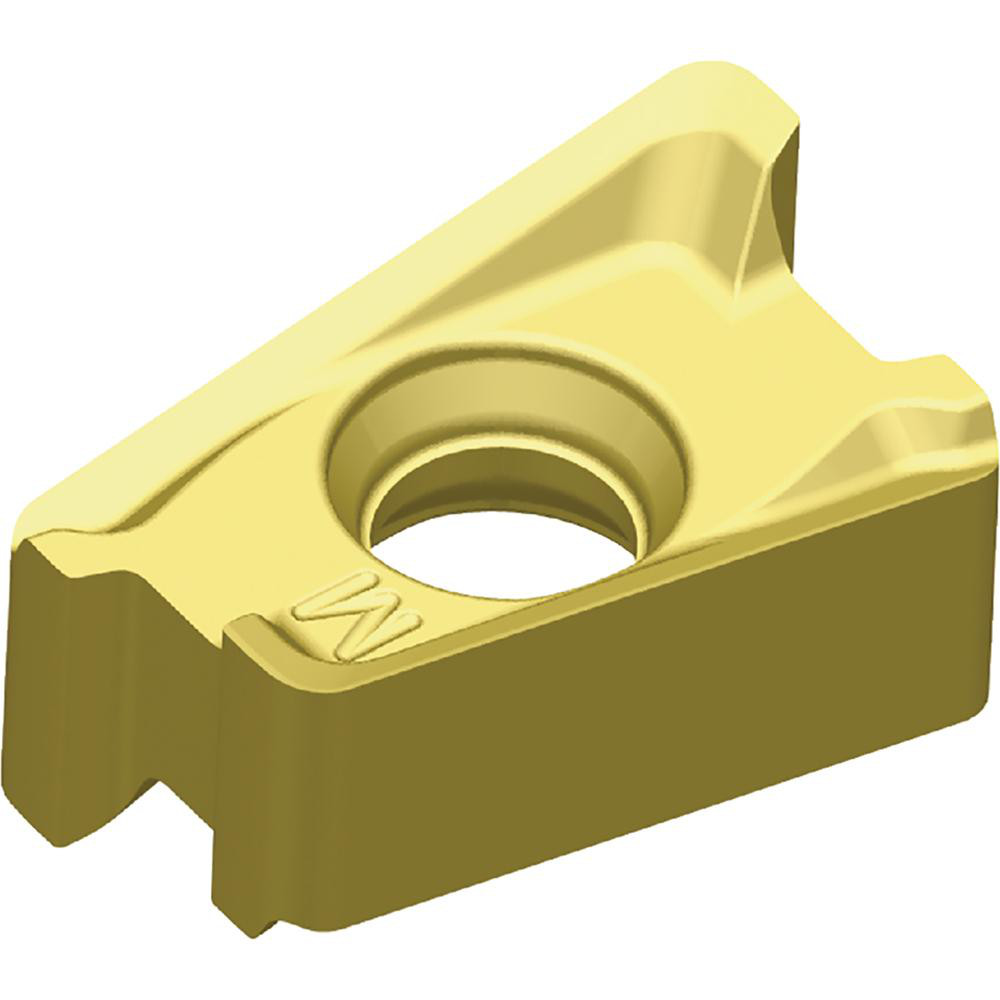

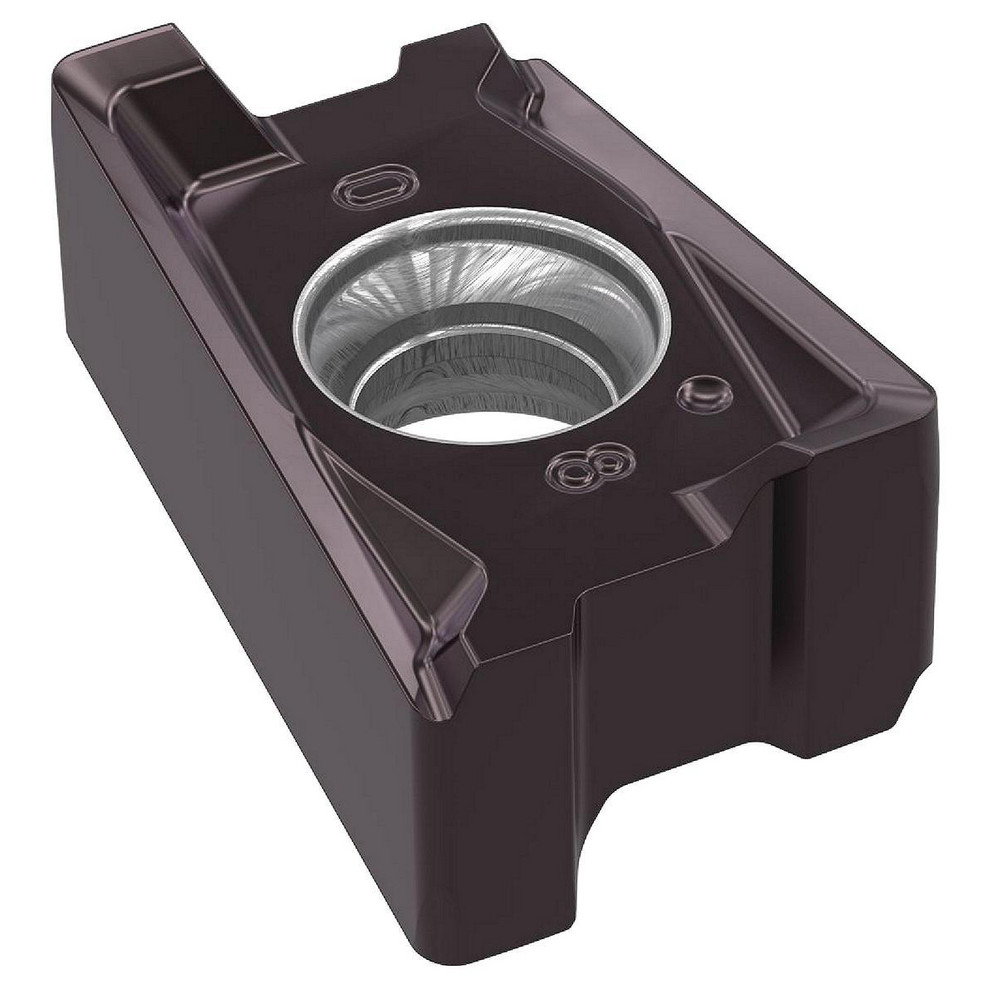

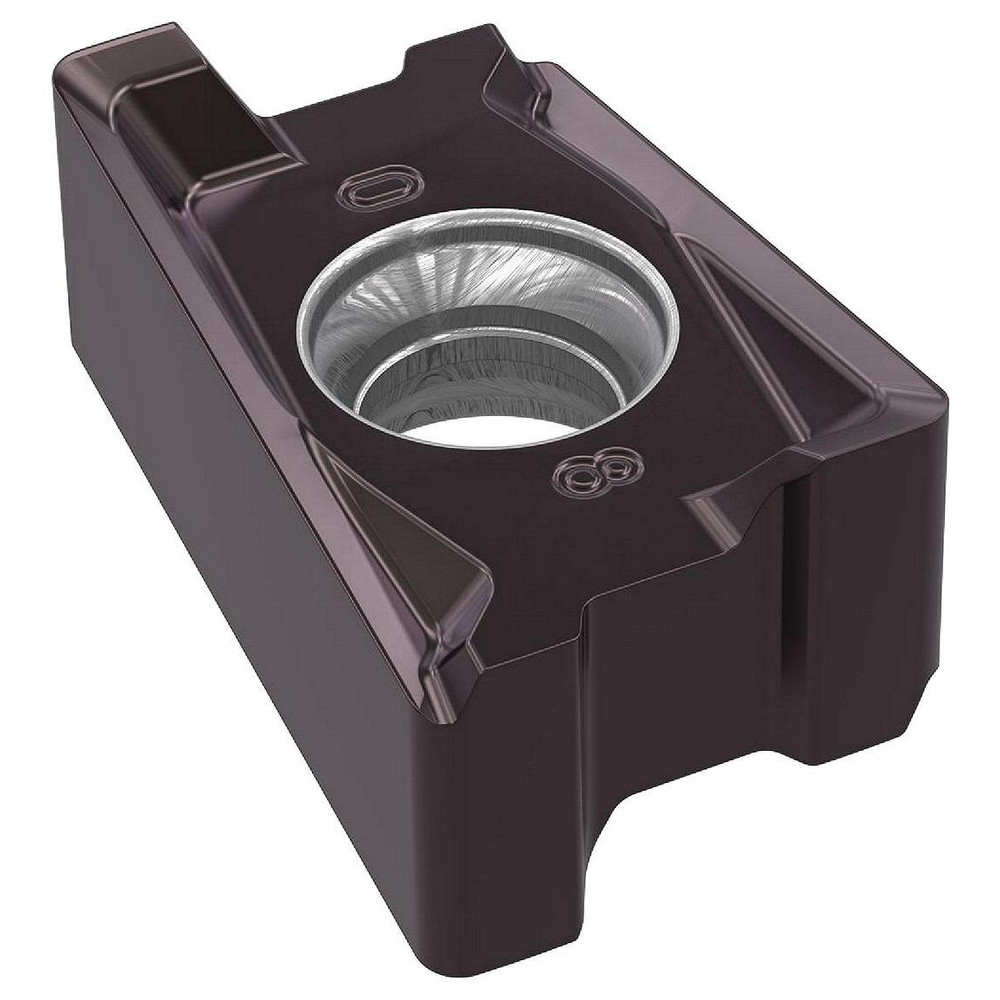

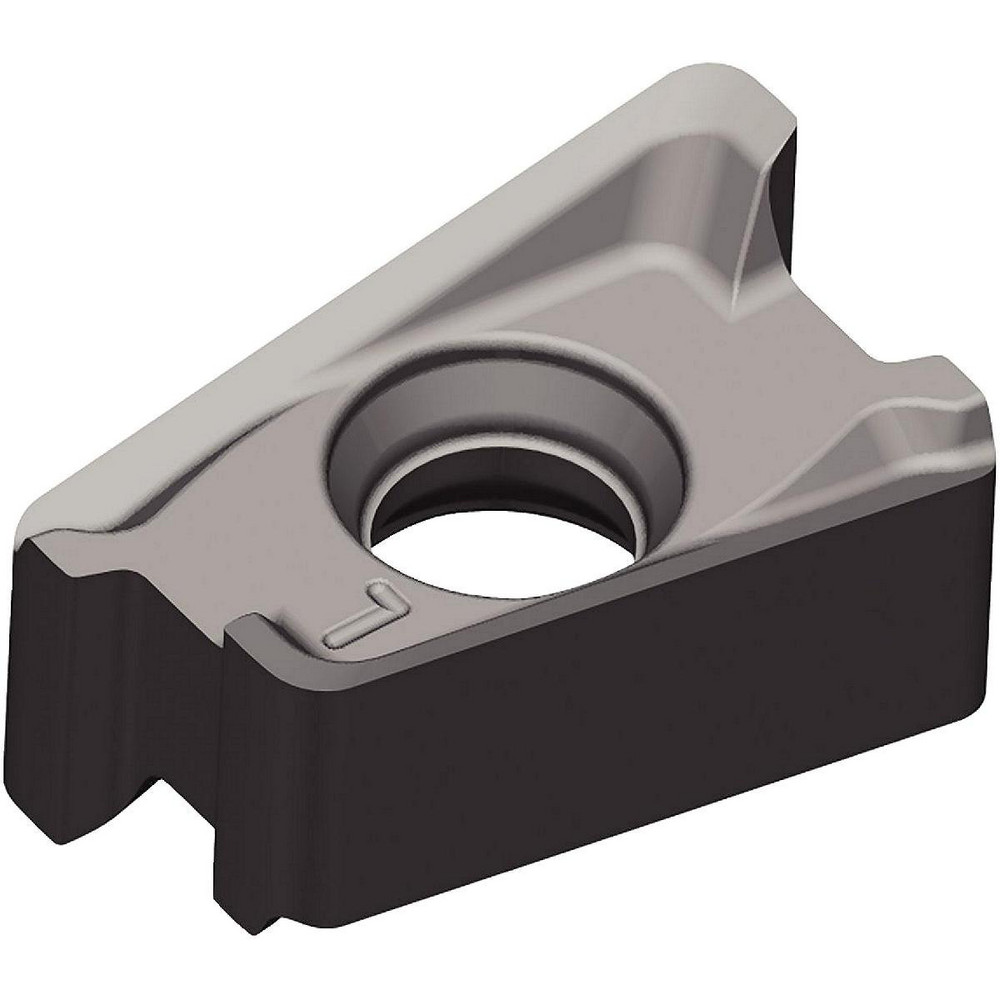

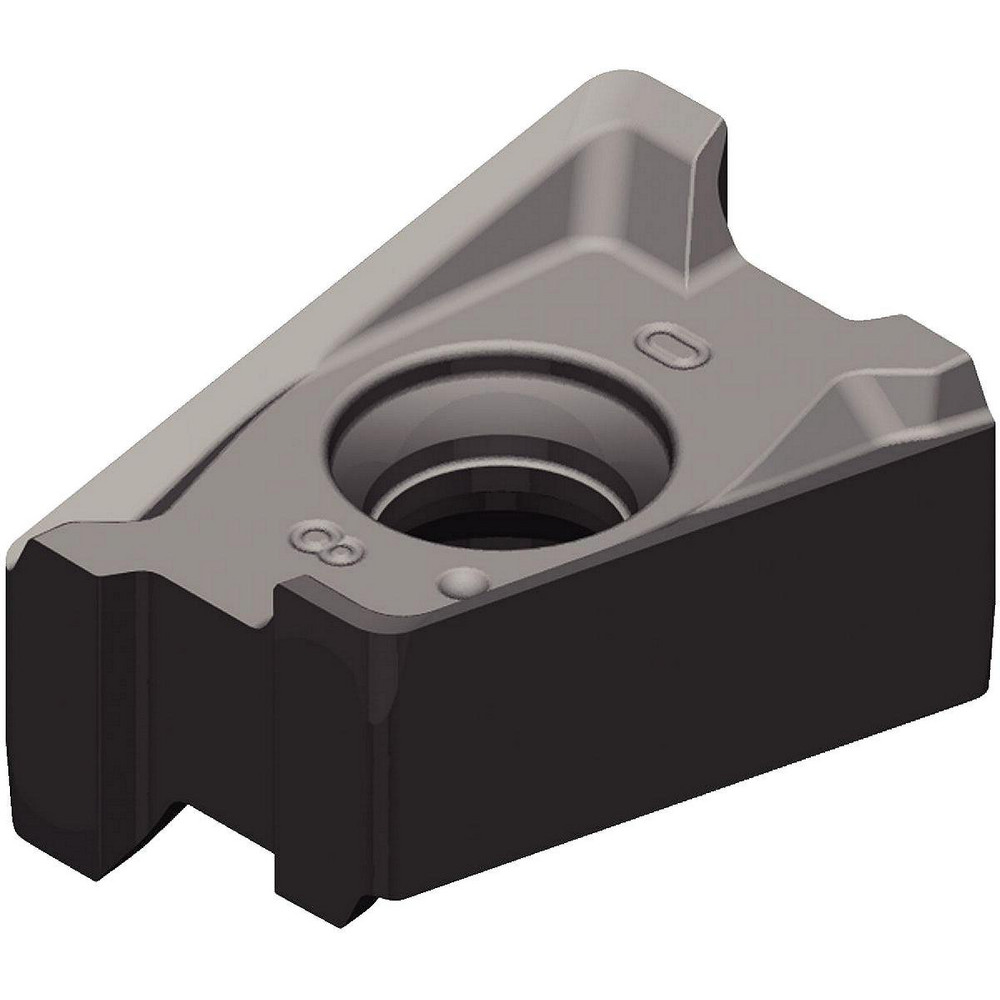

| Complete Insert Compatibility | XNGU100408SRMM |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM490D300Z10S100XN10 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 10 |
| Number Of Flutes | 10 |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 09920398 |
