1/4 Turn Latch Electrical Enclosures, 12 in H, 8 in D, 12 in W, 1, Steel

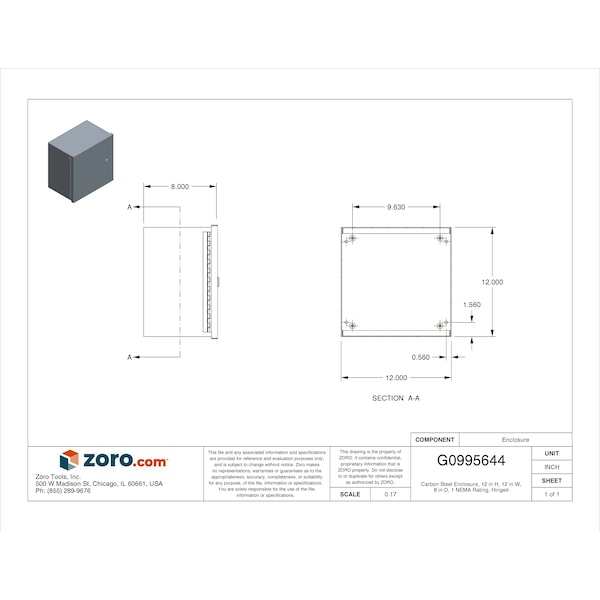

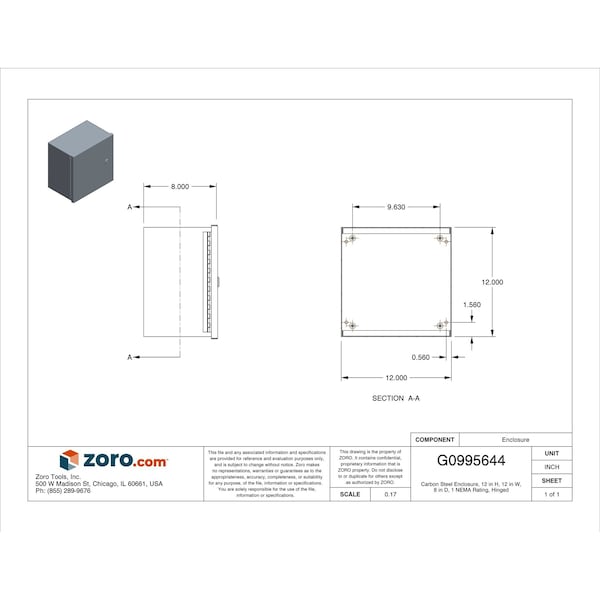

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 12 in |
| Nominal Height | 12 in |
| Nominal Depth | 8 in |
| NEMA Enclosure Rating | 1 |
| Enclosure Material | Steel |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Cover Style | Solid |
| Interior Panel | 2W822 |
| Features | Grounding Provisions, Mounting Holes |
| Metal Gauge | 14 ga |
| Series | N1C |
| Enclosure Cover Features | 1/4 Turn Latch Flush Mount |
| Usable Opening Depth | 7.88 in |
| Enclosure Cover Type | Hinged |
| Standards | CSA Certified, cULus, UL Listed |
| Enclosure NEMA Rating | NEMA 1 |
| Solid / Clear Cover | Solid |
| Material of Enclosure | Carbon Steel |
| Weight | 14 lb. |
| Capacity | 1,152 cu in |
| Application | Designed for use as control enclosures and instrument cases in areas not requiring oil-tight and dust-tight specifications. |
| Cover Material Thickness | 14 ga |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 14 ga |
| Compatible Panel Model Number | N1P1212, N1P1212G, N1P1212PP |
| Environment - MERCH | Indoor |
| Package Quantity | 1 |
