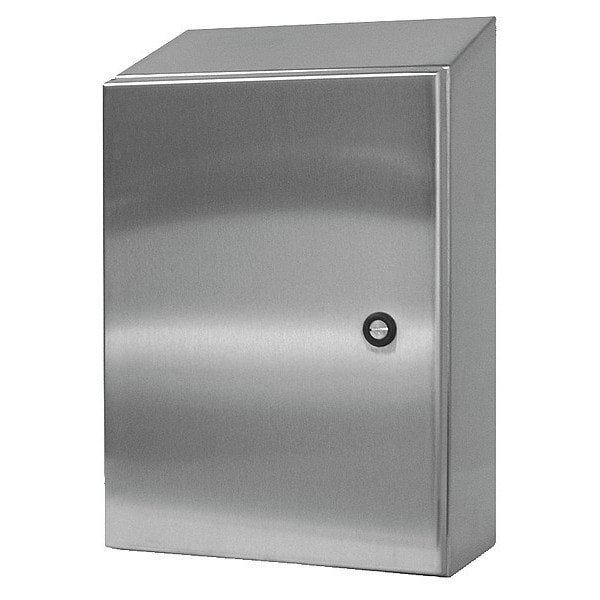

1/4 Turn Latch Electrical Enclosures, 24 in H, 8 in D, 20 in W, 12, 13, 3R, 4, 4X
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 24 in |
| Nominal Depth | 8 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Enclosure Material | Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Cover Style | Solid |
| Series | N412-CSSST |
| Interior Panel | 2NJ38 |
| Metal Gauge | 14 ga |
| Standards | CSA File No. LL66078, cULus, IEC 60529, UL Files E64791, E470978 |
| Usable Opening Depth | 7.88 in |
| Solid / Clear Cover | Solid |
| Enclosure Cover Type | Hinged |
| Features | Mounting Holes |
| IP Rating | IP66 |
| Enclosure NEMA Rating | NEMA 4, 4X, 12, 13 |
| Gasket | Seamless Polyurethane Poured in Place |
| Material of Enclosure | 304 Stainless Steel |
| Enclosure Cover Features | 1/4 Turn Semiflush Latch |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 14 ga |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Compatible Panel Model Number | NP2420C, NP2420CG, NP2420SSC |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Package Quantity | 1 |
