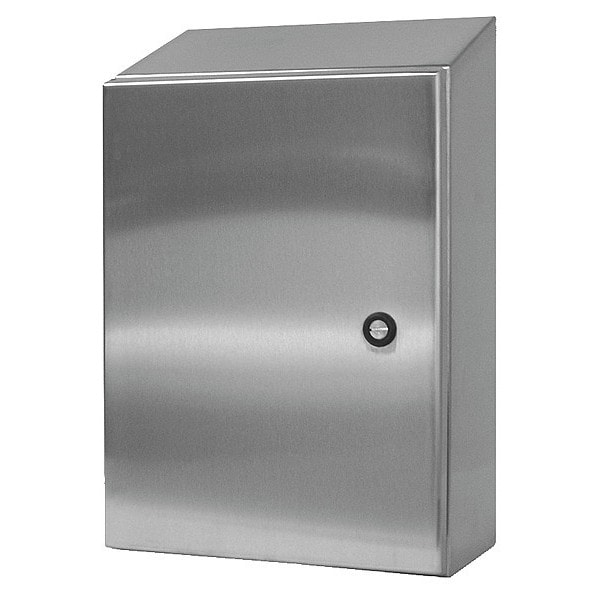

1/4 Turn Latch Electrical Enclosures, 30 in H, 8 in D, 30 in W, 12, 13, 3R, 4, 4X
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 30 in |
| Nominal Depth | 8 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Enclosure Material | Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Cover Style | Solid |
| Enclosure NEMA Rating | NEMA 4, 4X, 12, 13 |
| Features | Mounting Holes |
| Enclosure Cover Features | 1/4 Turn Semiflush Latch |
| Gasket | Seamless Polyurethane Poured in Place |
| Material of Enclosure | 304 Stainless Steel |
| Usable Opening Depth | 7.88 in |
| Metal Gauge | 14 ga |
| Interior Panel | 2NJ44 |
| Enclosure Cover Type | Hinged |
| Series | N412-CSSST |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| IP Rating | IP66 |
| Solid / Clear Cover | Solid |
| Application | Hubbell Wiegmann N412CSSST ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamli |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | NP3030C, NP3030CG, NP3030SSC |
| Body Material Thickness | 14 ga |
| Package Quantity | 1 |
