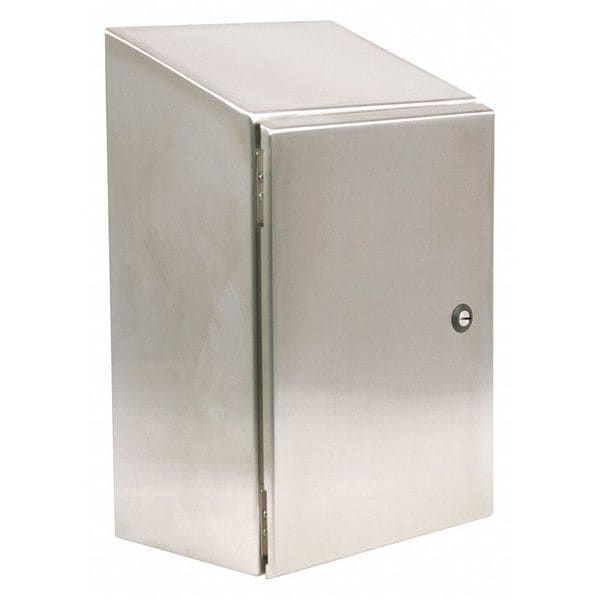

1/4 Turn Latch Electrical Enclosures, 36 in H, 8 in D, 30 in W, 12, 13, 3R, 4, 4X
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 36 in |
| Nominal Depth | 8 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Enclosure Material | Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Cover Style | Solid |
| Usable Opening Depth | 8 in |
| Gasket | Seamless Foam-In-Place |
| Enclosure Cover Type | Hinged |
| Interior Panel | Mfr No. NP3630C, NP3630CG |
| Solid / Clear Cover | Solid |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Material of Enclosure | 304 Stainless Steel |
| Series | Ultimate |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Metal Gauge | 14 ga |
| Enclosure Cover Features | 1/4 Turn Latch |
| Enclosure NEMA Rating | NEMA 4, 4X, 12, 13 |
| IP Rating | IP66 |
| Capacity | 8,640 cu in |
| Weight | 79 lb. |
| Application | Hubbell Wiegmann N412CSSST ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamli |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Gasket Material | Seamless Foam-In-Place |
| Body Material Thickness | 14 ga |
| Compatible Panel Model Number | NP3630C, NP3630CG, NP3630SSC |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
