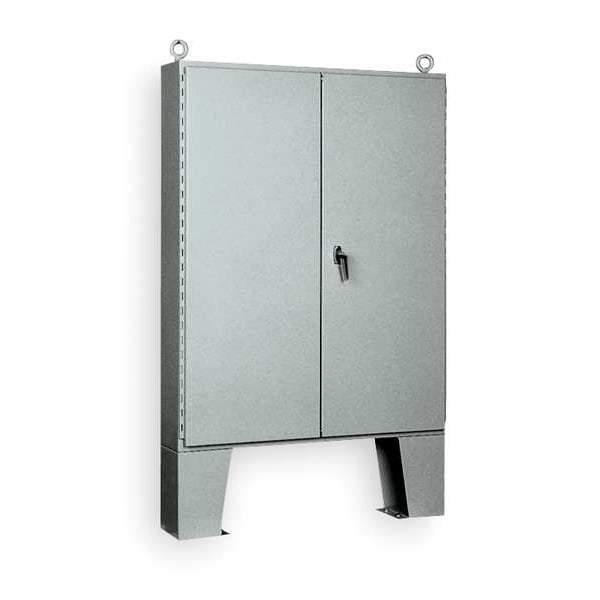

3 Point Latch with Padlock Handle Electrical Enclosures, 60 in H, 16 in D, 48 in W, 12, Steel
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 48 in |
| Nominal Height | 60 in |
| Nominal Depth | 16 in |
| NEMA Enclosure Rating | 12 |
| Enclosure Material | Steel |
| Closure Method | Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Floor |
| Cover Style | Solid |
| Enclosure Cover Type | Hinged |
| Material of Enclosure | Carbon Steel |
| Enclosure Cover Features | Keyed Handle |
| Standards | CSA Certified, cULus, UL Listed |
| Usable Opening Depth | 15.88 in |
| Interior Panel | 1ZHG9 |
| Series | N12 (large) |
| Includes | 12 in Floor Kit |
| Metal Gauge | 12 ga |
| Solid / Clear Cover | Solid |
| Enclosure NEMA Rating | NEMA 12 |
| Gasket | Seamless Polyurethane Poured in Place |
| Capacity | 46,080 cu in |
| Weight | 405 lb. |
| Application | Designed to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used to machine tool applications for housing motor starters, drives, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment found in automotive, pulp and paper, wood products, textile and similar industries. |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Body Material Thickness | 12 ga |
| Compatible Panel Model Number | NPDD6048, NPDD6048G |
| Environment - MERCH | Dust Tight |
| Package Quantity | 1 |
