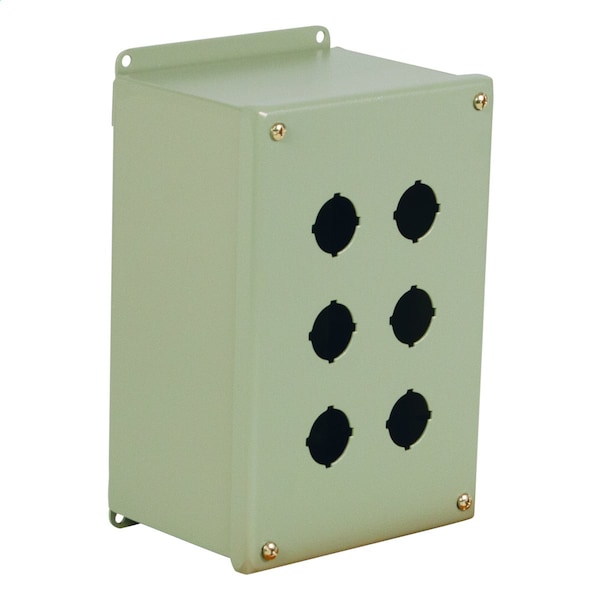

Carbon Steel Electrical Enclosures, 10 in H, 10 in D, 9 in W, NEMA 4, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 9 in |
| Nominal Height | 10 in |
| Nominal Depth | 10 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Hinged |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | PBXD |
| Features | Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" pushbutton holes accept all brands of oil-tight push buttons, switches, and pilot lights. Enclosures have internal detachable hinges to hold cover open during wiring, yet permit quick removal. Grounding provisions provided. |
| Standards | UL, CSA |
| Number of Holes | 9 |
| Application | Designed to hold 30.5mm oil-tight pushbuttons, switches, and pilot lights. Provide protection against dirt, dust, oil, and water. Extra deep design accommodates additional contact blocks for pushbuttons. |
| Weight | 9 lb. |
| Capacity | 900 cu in |
| Package Quantity | 1 |
