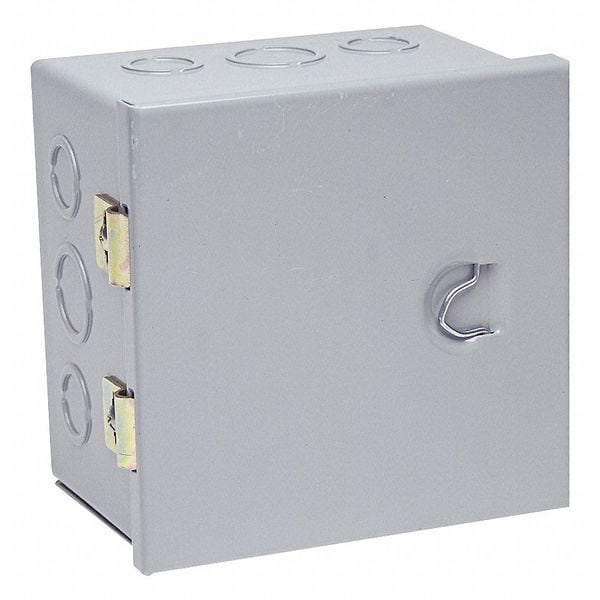

Carbon Steel Electrical Enclosures, 18 in H, 4 in D, 12 in W, NEMA 1, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 12 in |
| Nominal Height | 18 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 1 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | CSA Certified, cULus, UL Listed |
| Metal Gauge | 16 ga |
| Usable Opening Depth | 3.88 in |
| Series | A |
| Features | Mounting Holes |
| Enclosure Cover Features | Clamps |
| Enclosure Material | Steel |
| Weight | 22 lb. |
| Capacity | 864 cu in |
| Application | Designed for use as surface-mounted junction box, service box, switch box, and cutout box. |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Included |
| Cover Material Thickness | 16 ga |
| Cover Closure Type | Hinged |
| Body Material Thickness | 16 ga |
| NEMA Enclosure Rating | 1 |
| Environment - MERCH | Indoor |
| Package Quantity | 1 |
