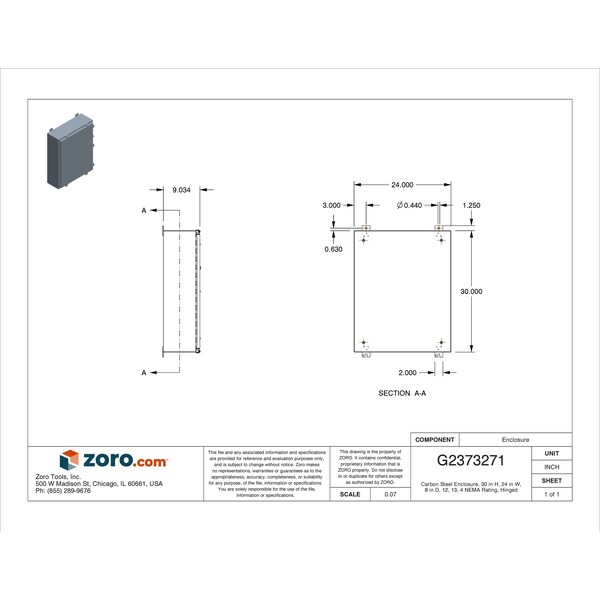

Carbon Steel Electrical Enclosures, 30 in H, 8 in D, 24 in W, NEMA 4, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 24 in |
| Nominal Height | 30 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Gasket | Seamless Polyurethane Poured in Place |
| Metal Gauge | 14 ga |
| Includes | Mounting Feet |
| Usable Opening Depth | 7.88 in |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Cover Features | Hasp and Staple for Padlocking |
| Interior Panel | 3A924 |
| Series | N4 |
| IP Rating | IP66 |
| Enclosure Material | Steel |
| Weight | 59 lb. |
| Capacity | 21,600 cu in |
| Application | Intended for use in housing electrical and electronic controls, instruments, components, and associated wiring, these enclosures incorporate hinged doors which provide convenient access. Designed for indoor or outdoor use in protecting components from dus |
| Environment - MERCH | Washdown |
| Body Material Thickness | 14 ga |
| Compatible Panel Model Number | NP3024, NP3024G |
| Includes Knockouts | Knockouts Not Included |
| NEMA Enclosure Rating | 12, 4, 13 |
| Cover Style | Solid |
| Cover Closure Type | Hinged |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Package Quantity | 1 |
