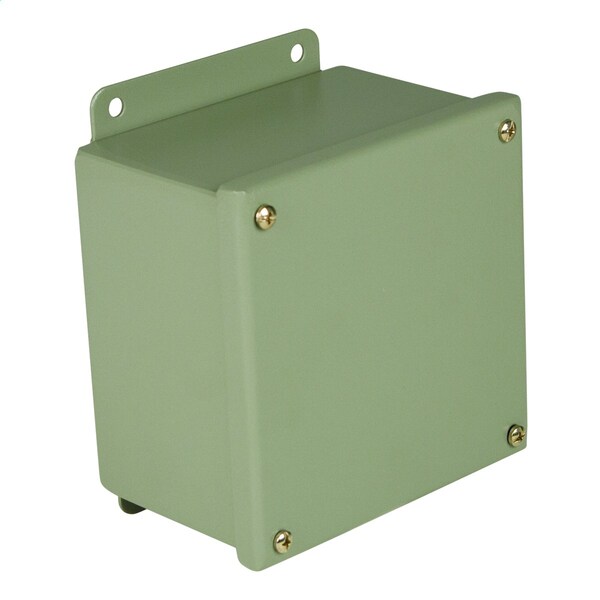

Carbon Steel Electrical Enclosures, 6 in H, 3 in D, 4 in W, NEMA 12, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 4 in |
| Nominal Height | 6 in |
| Nominal Depth | 3 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | UL, CSA |
| Features | Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts of holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. Captivated cover screws are provided which thread into sealed wells to prevent leakage through cover. Grounding provisions provided. |
| Weight | 3.17 lb. |
| Application | Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water. |
| Capacity | 72 cu in |
| Package Quantity | 1 |
