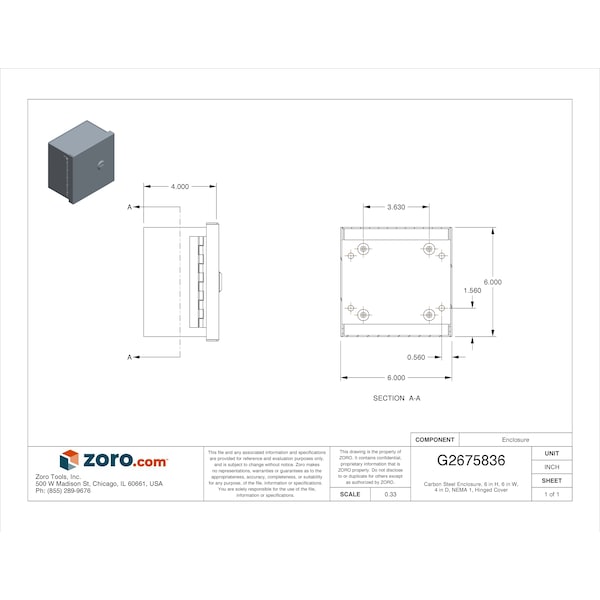

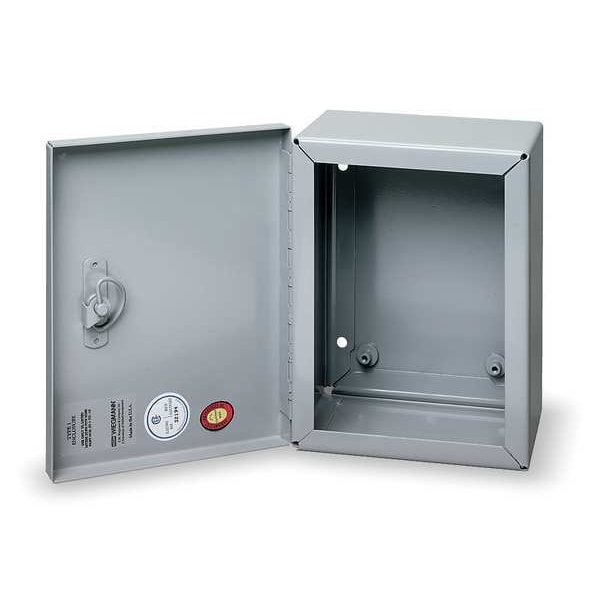

Carbon Steel Electrical Enclosures, 6 in H, 4 in D, 6 in W, NEMA 1, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 6 in |
| Nominal Height | 6 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 1 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | CSA Certified, cULus, UL Listed |
| Features | Grounding Provisions, Mounting Holes |
| Series | N1C |
| Usable Opening Depth | 3.88 in |
| Metal Gauge | 14 ga |
| Interior Panel | 1ZHF9 |
| Enclosure Material | Steel |
| Cover Type | Hinged Cover |
| Capacity | 144 cu in |
| Weight | 4 lb. |
| Application | Designed for use as control enclosures and instrument cases in areas not requiring oil-tight and dust-tight specifications. |
| Cover Material Thickness | 14 ga |
| Environment - MERCH | Indoor |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | N1P0606, N1P0606G, N1P0606PP |
| Body Material Thickness | 14 ga |
| NEMA Enclosure Rating | 1 |
| Cover Closure Type | Hinged |
| Package Quantity | 1 |
