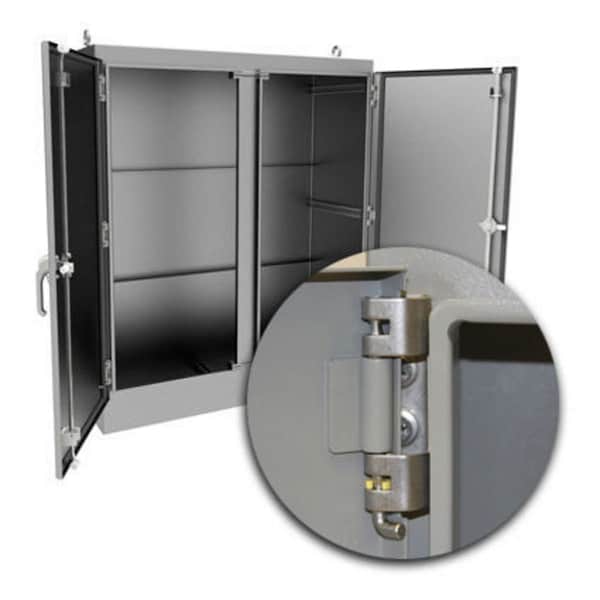

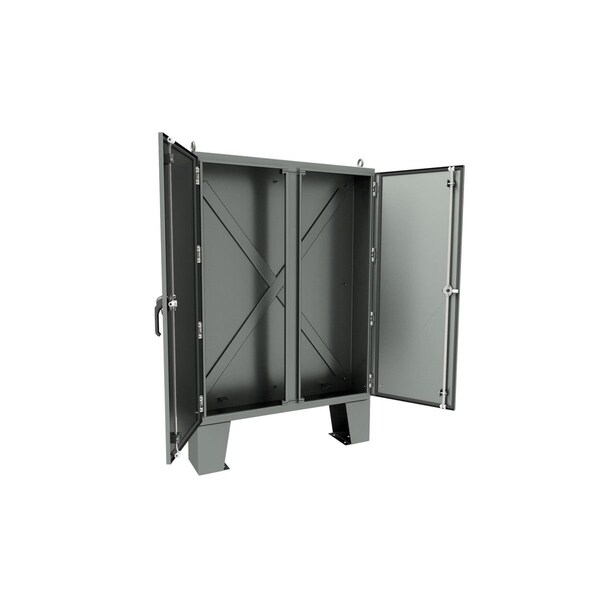

Carbon Steel Electrical Enclosures, 74 in H, 18 in D, 60 in W, NEMA 4, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 60 in |
| Nominal Height | 74 in |
| Nominal Depth | 18 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Floor |
| Solid / Clear Cover | Solid |
| Standards | cULus;IEC 60950;IP66 |

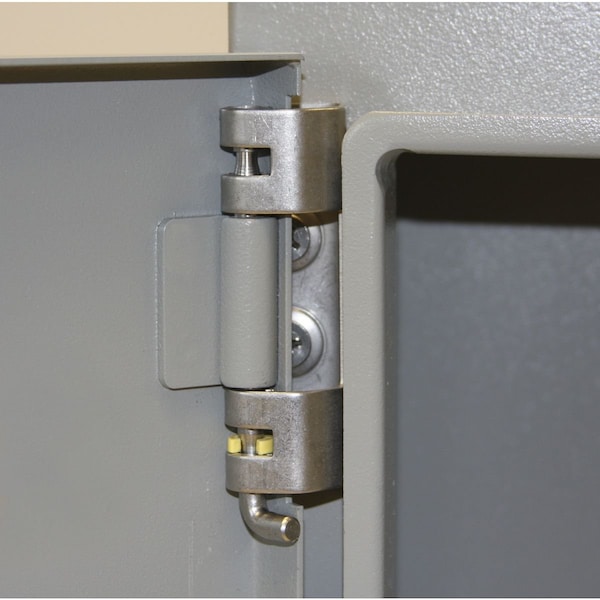

| Features | Body and doors are fabricated from carbon steel; Entire WRD series features our KwikHinge™ technology which allows enclosure doors to be quickly and easily removed by simply sliding the Heavy-Duty, 316 Stainless Steel, hinge pin; Seams are continuously welded and ground smooth and the doors are sealed with a poured in place gaskets; This enclosure also includes back panel and 3-point keylocking/padlocking combo handle |
| Series | KwikHinge |
| Weight | 529 lb. |
| Capacity | 79,920 cu in |
| Package Quantity | 1 |
