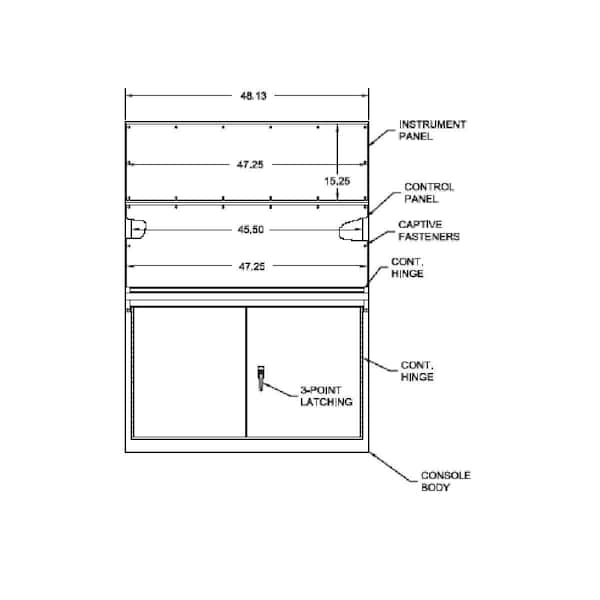

Console Body, 50 in. H x 48 in. W x 23 in. L, Carbon Steel
| Item | Console Body |
|---|---|
| Dimension | 50 in. H x 48 in. W x 23 in. L |
| Height | 50 in |
| Width | 48 in |
| Type | Console Body |
| Material | Carbon Steel |
| Color | Gray |
| Finish | Polyester Powder |
| NEMA Enclosure Type | NEMA 12 |
| Length | 23 in |
| Application | Designed to hold electrical and electronic controls and instruments. Pushbuttons, pilot lights, meters, switches, etc., can be mounted on the instrument panel. Interior components are motorized on stationary sub panels, swing-out sub panels, or relay rack |
| Depth | 23 in |
| Series | WC14 |
| Standard | cULus |
| Cover Type | Door |
| Latches Type | Handle |
| Listings | UL, CSA |
| Nema Rating | 12 |
| Actual Width | 48.13 in |
| Each - Width | 48.13 in |
| Cubic Capacity | 55,200 cu in |
| Construction | Continuously Welded Seams |
| Number of Doors (Fixed) | 2 |
| Actual Depth | 23.13 in |
| Certified Listed | cULus |
| UL Listed | Yes |
| Finish Type | Polyester |
| Actual Height | 50.13 in |
| Package Quantity | 1 |
