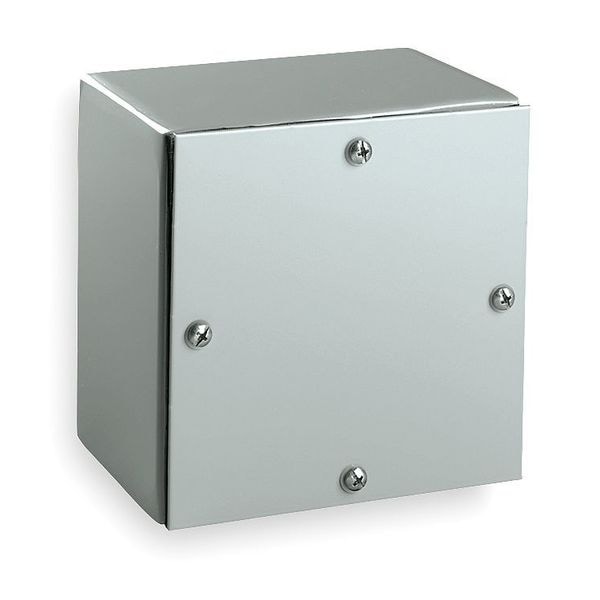

Screws Electrical Enclosures, 8 in H, 4 in D, 8 in W, 4, Steel

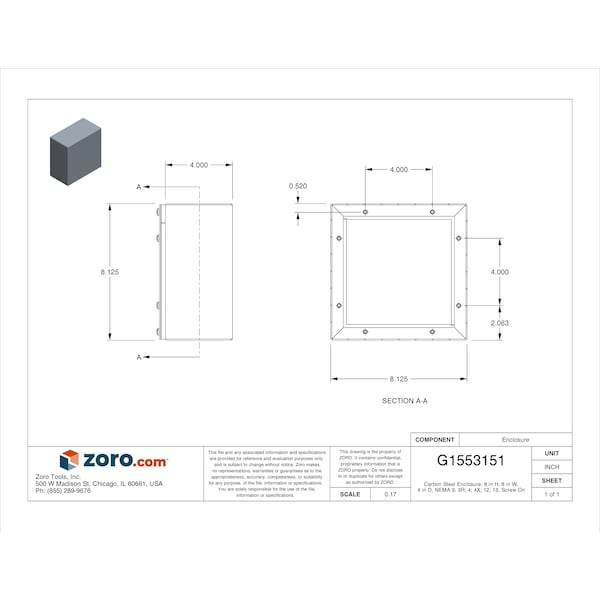

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 8 in |
| Nominal Height | 8 in |
| Nominal Depth | 4 in |
| NEMA Enclosure Rating | 4 |
| Enclosure Material | Steel |
| Closure Method | Screws |
| Cover Closure Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Cover Style | Solid |
| Material of Enclosure | Carbon Steel |
| Includes | Stainless Steel Cover Screws |
| Usable Opening Depth | 5.88 in |
| Standards | CSA Certified, cULus, UL Listed |
| Metal Gauge | 14 ga |
| Enclosure Cover Features | Stainless Steel Cover Screws |
| Enclosure Cover Type | Screw On |
| Gasket | Neoprene |
| Enclosure NEMA Rating | NEMA 4 |
| Series | WA-GSC |
| Solid / Clear Cover | Solid |
| Cover Type | Screw Cover |
| Features | Bodies and covers fabricated from 14 gauge carbon steel; Seams are continuously welded and ground smooth; Cover contains closed cell oil resistant neoprene gasket; Enclosure comes with stainless steel cover screws which thread into sealed wells to prevent liquid, dust, etc. from entering into the box through the screw holes; Ground stud located in door; No holes, knockout, or rear mounting holes |
| Application | Designed for use as wiring box, junction box, pull box, and terminal box in many indoor or outdoor applications where dust or moisture is a problem. |
| Gasket Material | Neoprene |
| Cover Material Thickness | 14 ga |
| Environment - MERCH | Washdown |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 14 ga |
| Package Quantity | 1 |
