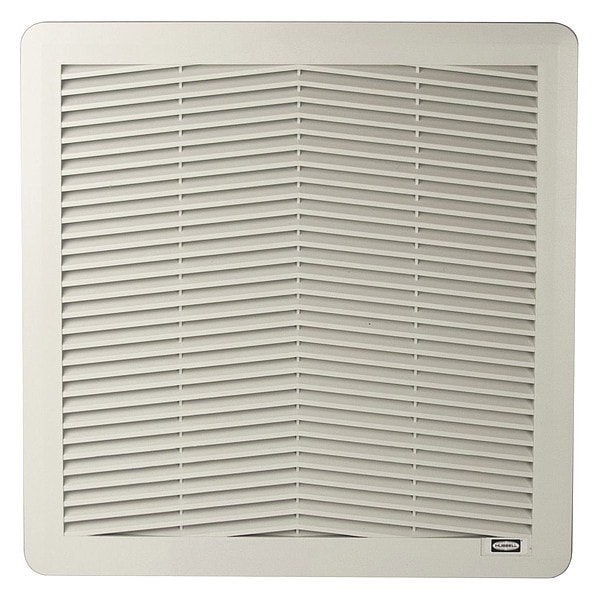

Standard Square Axial Fan, 115V AC, 1 Phase, PBT Plastic, 8 11/16 in W.
| Blade Material | PA Plastic |
|---|---|
| CFM @ 0.000-In. SP | 159 cfm |
| Depth | 5-13/16 in |
| Height | 8-11/16 in |
| Housing Material | PBT Plastic |
| Phase | 1 |
| Width | 8-11/16 in |
| Voltage | 115V AC |
| Fan Height | 8-21/32 in |
| Mounting | Flange |
| Fan Voltage | 115VAC |
| Fan Item | Axial Fan |
| Requires | Hard Wiring |
| Electrical Connection - Fans | Terminals |
| Bearings | Ball |
| Amps | 0.73 |
| Hz | 60/50 Hz |
| Standards | cULus |
| Fan Shape | Square |
| Thermal Protection | Impedance |
| Fan Width | 12-51/64 in |
| Fan dBA | 69 |
| Fan Width | 12-51/64 in |
| Item | Standard Square Axial Fan |
| Fan Depth | 5-45/64 in |
| IP Rating | 00 |
| Max. Ambient Temp. | 131 deg F |
| Mounting Position | Vertical |
| Motor Insulation | Class A |
| Mounting Eye O.C. - Fans | 19-7/8 in |
| Fan RPM | 3,000 |
| Fan Watts | 36 |
| Motor Type | Shaded pole |
| Bearing Type | Ball |
| Environmental Applications | Equipment Cooling |
| Fan Mounting Location | Enclosure |
| RPM | 3000 RPM |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
