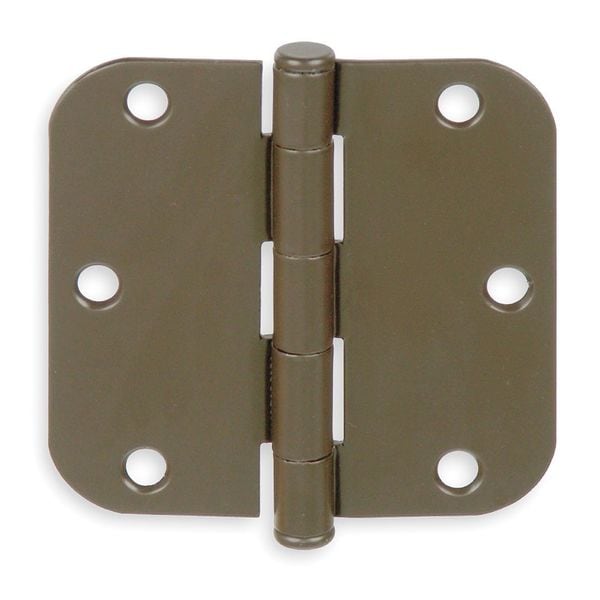

Door and Butt Hinge, Steel, Full Mortise Mounting, 1 1/2 in Leaf W x 3 1/2 in Leaf H
| Corners | Round |
|---|---|
| Door Leaf Height | 3-1/2 in |
| Door Leaf Thickness | 0.078 in |
| Door Leaf Width | 3-1/2 in |
| Finish | Antique Bronze |
| Holes per Leaf | 3 |
| Load Capacity | Not Applicable |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 1/4 in |
| Range of Motion | 280 deg |
| Features | Countersunk Holes |
| Item | Door and Butt Hinge |
| Bearing Type | Plain |
| Frame Leaf Width | 1-1/2 in |
| Frame Leaf Height | 3-1/2 in |
| Pin Material | Steel |
| Pin Type | Removable |
| Holes | With |
| Frame Leaf Thickness | 0.078 in |
| Hardware | Yes |
| Ligature Resistant | No |
| Overall Knuckle Height | 5 in |
| Overall Width | 3-1/2 in |
| Hinge Number | Not Applicable |
| Standards | Not Applicable |
| Hand Orientation | Non-Handed |
| Product Type | Package Quantity 2 |
| Removable Pin | Yes |
| Includes Hardware | Hardware Included |
| Fire Rating | Not Applicable |
| Range of Motion - Maximum | 280 deg |
| Resistance Properties | Corrosion-Resistant |
| Corner Radius | 5/8 in |
| Mounting Style | Full Mortise |
| Door Thickness - Minimum | 1-1/2 in |
| Number of Holes per Leaf | 3 |
| Corner Type | Round |
| Door Thickness - Maximum | Not Applicable |
| Pin Diameter | 1/4 in |
| ANSI/BHMA Finish | Satin Bronze, Clear Coated, Relieved |
| Country of Origin (subject to change) | China |
| Package Quantity | 2 |
