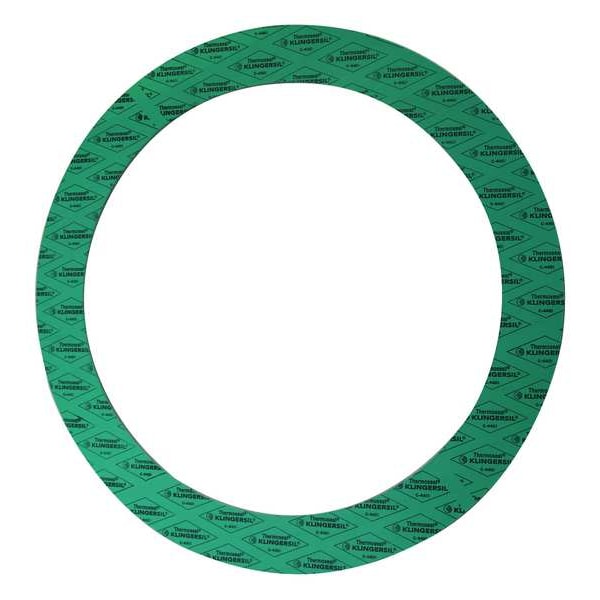

Flange Gasket, C-4401, 10 in., 13-3/8 in.
| Pipe Size | 10 in |
|---|---|
| Outside Dia. | 13-3/8 in |
| Inside Dia. | 10-3/4 in |
| Bolt Holes | 0 |
| Thickness | 1/16 in |
| Material of Construction | Synthetic Fiber with Nitrile Binder |
| Max. Pressure (PSI) | 150 |
| Flange Class | Class 150 |
| Color | Green |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Type | C-4401 ANSI Class 150 |
| Continuous Max. Temp. (F) | 400 deg F |
| Standards | ASME B16.21 Standards |
| Temp. Range (F) | 0 to 750 |
| Binder Material | Buna-N |
| Reinforced | Yes |
| FDA Approved | No |
| Insert Material | None |
| Metal Detectable Gasket | No |
| For Fluid Type | Gases, Liquids, Steam |
| Included Fasteners | Not Applicable |
| For Flange ANSI Class | 150 |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 750 deg F |
| Gasket Material | Aramid |
| Minimum Operating Temperature | 0 deg F |
| X-Ray Detectable | No |
| Inside Diameter | 10-3/4 in |
| System of Measurement | Inch |
| Resistance Properties | Chemical-Resistant |
| Gasket Type | Ring Gasket |
| For Pipe Size | 10 in |
| Hardness | Not Rated |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
