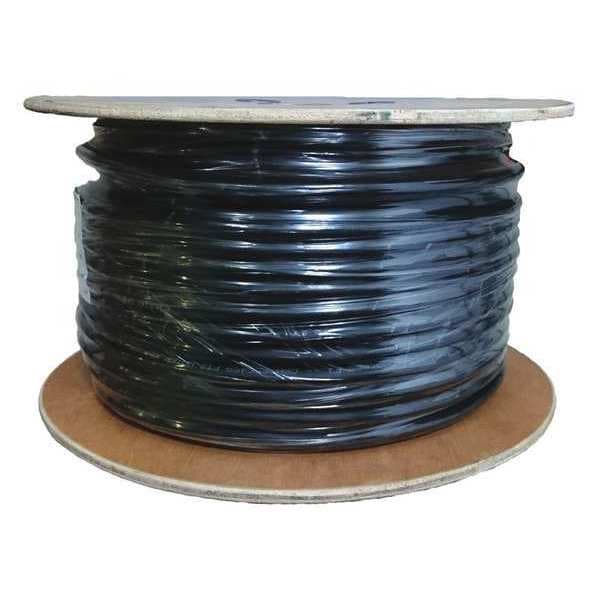

Portable Cord, SOOW, 12 AWG, 4 C, Black, Rubber, Stranded, 600V, Indoor/Outdoor, 100 ft
| Item | Portable Cord |
|---|---|
| Trade Designation | SOOW |
| Wire Size | 12 AWG |
| Number of Conductors | 4 |
| Conductor Design | Stranded |
| Jacket Material | Rubber |
| Jacket Color | Black |
| Length | 100 ft |
| Location | Indoor, Outdoor |
| Voltage | 600V |
| Conductor Material | Copper |
| Standards | CSA Flexible Cord, MSHA Approved, RoHS Compliant, UL Flexible Cord |
| Nominal Outside Dia. | 0.65 in |
| Features | Excellent Resistance to Oil and Moisture, Good Tensile Strength, Elongation and Aging Characteristics, High Flexibility, Excellent Abrasion Resistance, Water, Ozone, and Weather Resistant |
| Wire Color | Black, Green, Red, White |
| Max. Amps | 20 |
| Temp. Rating | -40 to 194°F |
| Conductor Size | 12 AWG |
| Special Features | Oil Resistant, Water Resistant |
| Gauge/Conductor | 12/4 |
| Outside Dia. | 0.65 in |
| Overall Length | 100 ft |
| Number of Ground Conductors | 1 |
| Grounding Conductor Insulation Material | EPDM |
| Operating Temperature - Minimum | -40 deg F |
| Grounding Conductor Insulation Color | Green |
| Packaging | Spool |
| Temperature Rating - Maximum Wet | 140 deg F |
| Conductor Insulation Material | EPDM |
| Temperature Rating - Maximum Dry | 194 deg F |
| Nominal Outside Diameter | 0.65 in |
| Ampacity at Maximum Temperature | Not Applicable |
| Conductor Insulation Color | Black, Green, Red, White |
| Minimum Bend Radius | Not Applicable |
| Grounding Conductor Size | 12 AWG |
| Grounding Conductor Material | Copper |
| Number of Strands | 65 |
| Package Quantity | 1 |
