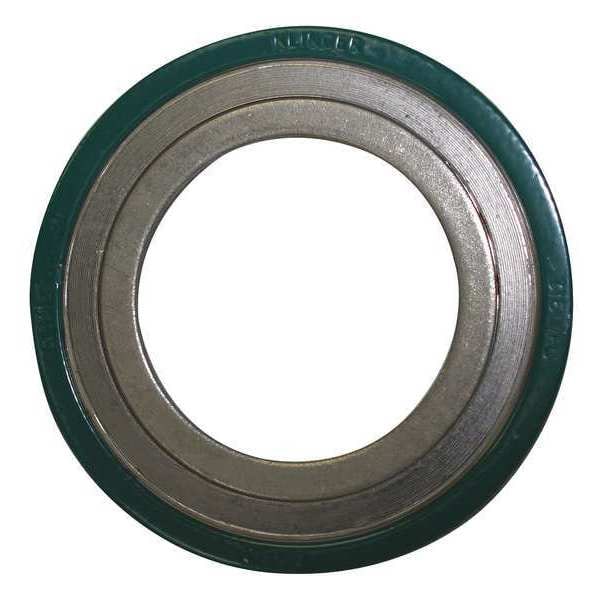

Spiral Wound Gasket, CRIR, 24 in, 28-1/4 in
| Item | Spiral Wound Flange Gasket |
|---|---|
| Pipe Size | 24 in |
| Outside Dia. | 28-1/4 in |
| Bolt Holes | 0 |
| Inside Dia. | 24-3/4 in |
| Metal Detectable | Yes |
| Material of Construction | 304SS and Flexible Graphite |
| Thickness | 1/4 in |
| Continuous Max. Temp. (F) | 932 deg F |
| Max. Pressure (PSI) | 150 |
| Standards | API 6FB Fire Safe Certified, ASME B16.20 Standards |
| Temp. Range (F) | 0 to 932 |
| Color | Gray Stripe, Green, Yellow |
| Type | CRIR ANSI Class 150 |
| Winding | 304SS |
| Flange Class | Class 150 |
| For Flange ANSI Class | 150 |
| Inner Ring Material | Stainless Steel |
| Spiral Winding Stainless Steel Grade | 304 |
| Inner Ring Stainless Steel Grade | 304 |
| Outer Ring Material | Carbon Steel |
| Spiral Winding Material | Stainless Steel |
| Filler Material | Graphite |
| Rim Stripe Color | Gray |
| Maximum Operating Pressure | 150 psi |
| Minimum Operating Temperature | 0 deg F |
| System of Measurement | Inch |
| Inside Diameter | 24-3/4 in |
| For Pipe Size | 24 in |
| Maximum Operating Temperature | 932 deg F |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
