Product Description

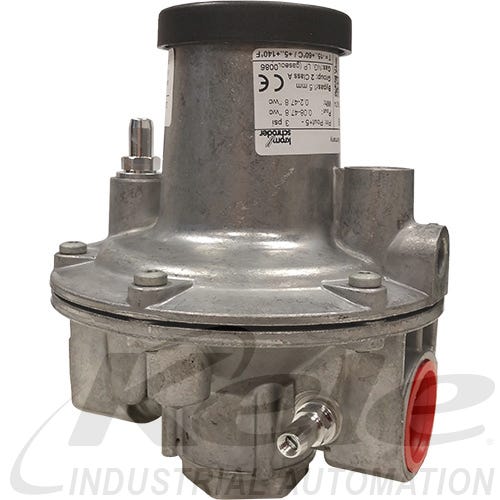

The Kromschroder 03155164 GIK 50TN02-5 air/gas ratio control is designed to maintain a constant one to one pressure ratio. This regulator controls gas pressure upstream of burners in systems that do not use preheated combustion air. It features an internal bypass and an inlet pressure compensation diaphragm, ensuring consistent performance across various applications.
Maintains a constant gas/air ratio.
Features an inlet pressure compensation diaphragm.
Includes an internal bypass for optimal performance.
Product Highlights
The GIK 50TN02-5 is suitable for use in multiple industries, including iron, steel, glass, ceramics, packaging, paper, and food processing.
Product Information
Standard Information
Manufacturer: Kromschroder
MPN: 03155164
Technical Specifications
Process Connection Size: two NPT
Connection Size: DN 50
Connection Type: NPT internal thread
Inlet Gas Pressure: Up to three PSIG
Outlet Gas Pressure: 0.8 to 47.5 W.C.
Process Temperature Limits: -4 to 158 F
Approvals: CE, EAC
Maximum Inlet Pressure: 0.2 bar
Product DescriptionThe Kromschroder 03155164 GIK 50TN02-5 air/gas ratio control is designed to maintain a constant one to one pressure ratio. This regulator controls gas pressure upstream of burners in systems that do not use preheated combustion air. It features an internal bypass and an inlet pressure compensation diaphragm, ensuring consistent performance across various applications.
Maintains a constant gas/air ratio.
Features an inlet pressure compensation diaphragm.
Includes an internal bypass for optimal performance.
Product HighlightsThe GIK 50TN02-5 is suitable for use in multiple industries, including iron, steel, glass, ceramics, packaging, paper, and food processing.Product InformationStandard Information
Manufacturer: Kromschroder
MPN: 03155164
Technical Specifications
Process Connection Size: two NPT
Connection Size: DN 50
Connection Type: NPT internal thread
Inlet Gas Pressure: Up to three PSIG
Outlet Gas Pressure: 0.8 to 47.5 W.C.
Process Temperature Limits: -4 to 158 F
Approvals: CE, EAC
Maximum Inlet Pressure: 0.2 bar
Vendor: KROMSCHRODER
Vendor Raw: KROMSCHRODER
Product Type: CONTROL BOARDS
Availability Text: In Stock
Manufacturer: Kromschroder
MPN: 03155164
Process Connection Size: two NPT
Connection Size: DN 50
Connection Type: NPT internal thread
Inlet Gas Pressure: Up to three PSIG
Outlet Gas Pressure: 0.8 to 47.5 W.C.
Process Temperature Limits: -4 to 158 F
Approvals: CE, EAC
Maximum Inlet Pressure: 0.2 bar
