Product Description

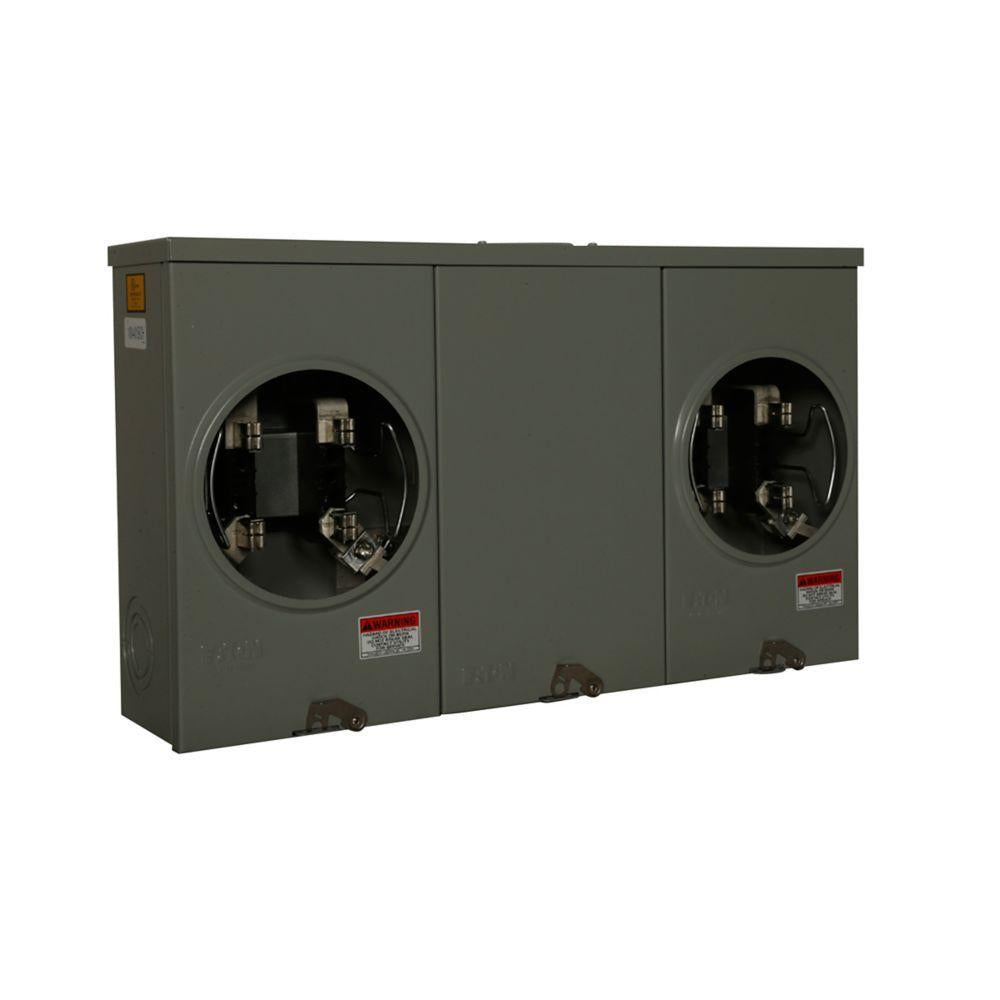

The Eaton 1004401BCH is a 200 amp meter socket designed for residential and light commercial use. This product features multiple position horizontal ganged sockets and can accommodate various wire sizes. It is suitable for both overhead and underground services.
200 Amp capacity
Four jaws for secure connections
Rated for 600 Volts
Product Highlights
This meter socket is utility approved, making it ideal for residential installations and temporary power on construction sites. It is constructed to provide a secure and long-lasting performance.
Product Information
Standard Information
Brand: Eaton
MPN: 1004401BCH
Technical Specifications
Amperage Rating: 200 A
Voltage Rating: 600 VAC
Phase: 1
Number of Jaws: 4
Feed Type: Bottom, Top, Underground
Hub Size: 5 x 5 inches
Wire Size: 8 AWG to 250 kcmil, 6 AWG to 350 kcmil
Cover Type: Ring
Dimensions: 5.38 inches L x 24.31 inches W x 14.13 inches H
Product DescriptionThe Eaton 1004401BCH is a 200 amp meter socket designed for residential and light commercial use. This product features multiple position horizontal ganged sockets and can accommodate various wire sizes. It is suitable for both overhead and underground services.
200 Amp capacity
Four jaws for secure connections
Rated for 600 Volts
Product HighlightsThis meter socket is utility approved, making it ideal for residential installations and temporary power on construction sites. It is constructed to provide a secure and long-lasting performance.Product InformationStandard Information
Brand: Eaton
MPN: 1004401BCH
Technical Specifications
Amperage Rating: 200 A
Voltage Rating: 600 VAC
Phase: 1
Number of Jaws: 4
Feed Type: Bottom, Top, Underground
Hub Size: 5 x 5 inches
Wire Size: 8 AWG to 250 kcmil, 6 AWG to 350 kcmil
Cover Type: Ring
Dimensions: 5.38 inches L x 24.31 inches W x 14.13 inches H
