Product Description

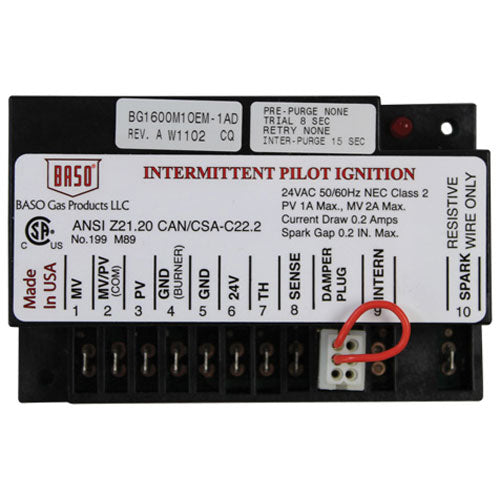

This item for Garland, MPN 1269600, is an ignition control designed for natural gas and liquid propane systems. It features a new style black box and operates at twenty-four volts AC with a frequency of fifty to sixty hertz.
Intermittent pilot ignition control
Trial time of eight seconds
Includes installation instructions
Product Highlights
Suitable for various applications, this ignition control ensures reliable operation for gas appliances.
Product Information
Standard Information
Product Notes: New style, black box, BASO, model #BG1600M10EM-1AD
Connections: 1 MV, 2 MV/PV, 3 PV, 4 GND, 5 GND, 6 24V, 7 TH, 8 SENSE
Technical Specifications
Trial Time: 8 seconds
Max Voltage: 24 VAC
Weight: 1 lb
Dimensions: 5.5 inches L x 4.3 inches W x 3.5 inches H
Max Current Draw: 0.2 amp
Max Pilot Valve Current: 1 amp
Max Main Valve Current: 2 amps
Connections: 1 MV, 2 MV/PV, 3 PV, 4 GND (burner)
Product DescriptionThis item for Garland, MPN 1269600, is an ignition control designed for natural gas and liquid propane systems. It features a new style black box and operates at twenty-four volts AC with a frequency of fifty to sixty hertz.
Intermittent pilot ignition control
Trial time of eight seconds
Includes installation instructions
Product HighlightsSuitable for various applications, this ignition control ensures reliable operation for gas appliances.Product InformationStandard Information
Product Notes: New style, black box, BASO, model #BG1600M10EM-1AD
Connections: 1 MV, 2 MV/PV, 3 PV, 4 GND, 5 GND, 6 24V, 7 TH, 8 SENSE
Technical Specifications
Trial Time: 8 seconds
Max Voltage: 24 VAC
Weight: 1 lb
Dimensions: 5.5 inches L x 4.3 inches W x 3.5 inches H
Max Current Draw: 0.2 amp
Max Pilot Valve Current: 1 amp
Max Main Valve Current: 2 amps
Connections: 1 MV, 2 MV/PV, 3 PV, 4 GND (burner)
Vendor: GARLAND
Vendor Raw: GARLAND
Product Type: IGNITION CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: In Stock
Product Notes: New style, black box, BASO, model #BG1600M10EM-1AD
Connections: 1 MV, 2 MV/PV, 3 PV, 4 GND (burner)
Trial Time: 8 seconds
Max Voltage: 24 VAC
Weight: 1 lb
Dimensions: 5.5 inches L x 4.3 inches W x 3.5 inches H
Max Current Draw: 0.2 amp
Max Pilot Valve Current: 1 amp
Max Main Valve Current: 2 amps
