Product Description

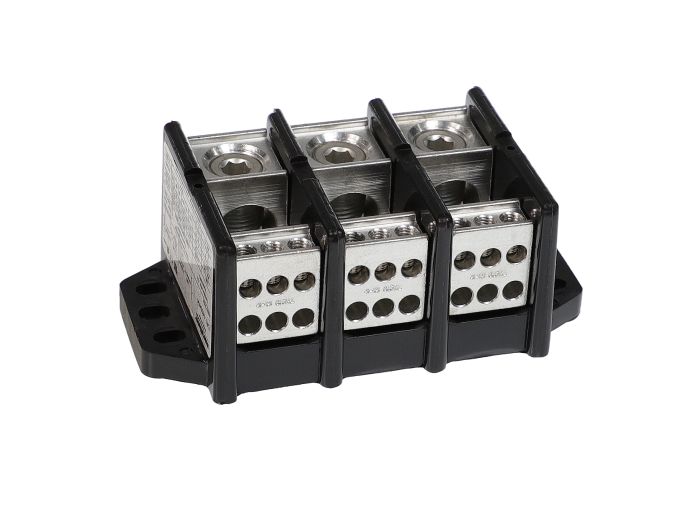

The CARRIER 1403404 is a power distribution block by Marathon Special Products. This block is intended for reliable load distribution across various applications. Key features include flexible wire compatibility, a UL-listed voltage rating, and several mounting options for ease of installation. The open-style design allows for adaptiveness in multiple settings.
3-pole configuration for enhanced performance
Rated for current up to 310A
Voltage rating of 600V AC for safe usage
Product Highlights
This product is ideal for HVAC, electrical, and industrial applications requiring efficient load management.
Product Information
Standard Information
Manufacturer: Marathon Special Products
MPN: 1403404
Series: 140
Technical Specifications
Number of Poles: 3
AC Voltage: 600 VAC
Current Rating: 310 A
Number of Inputs per Pole: 1
Number of Outputs per Pole: 6
Electrical Connection: Box Lug/Box Lug
Mounting: Panel Mount
Line Side Wire Range: 350 kcmil-6 AWG
Output Wire Range: 4-14 AWG
Composition: Phenolic
Approvals: CE, CSA, UL
Product DescriptionThe CARRIER 1403404 is a power distribution block by Marathon Special Products. This block is intended for reliable load distribution across various applications. Key features include flexible wire compatibility, a UL-listed voltage rating, and several mounting options for ease of installation. The open-style design allows for adaptiveness in multiple settings.
3-pole configuration for enhanced performance
Rated for current up to 310A
Voltage rating of 600V AC for safe usage
Product HighlightsThis product is ideal for HVAC, electrical, and industrial applications requiring efficient load management.Product InformationStandard Information
Manufacturer: Marathon Special Products
MPN: 1403404
Series: 140
Technical Specifications
Number of Poles: 3
AC Voltage: 600 VAC
Current Rating: 310 A
Number of Inputs per Pole: 1
Number of Outputs per Pole: 6
Electrical Connection: Box Lug/Box Lug
Mounting: Panel Mount
Line Side Wire Range: 350 kcmil-6 AWG
Output Wire Range: 4-14 AWG
Composition: Phenolic
Approvals: CE, CSA, UL
Vendor: CARRIER
Vendor Raw: CARRIER
Product Type: CONTROL BOARDS
Availability Text: In Stock
Manufacturer: Marathon Special Products
MPN: 1403404
Series: 140
Number of Poles: 3
AC Voltage: 600 VAC
Current Rating: 310 A
Number of Inputs per Pole: 1
Number of Outputs per Pole: 6
Electrical Connection: Box Lug/Box Lug
Mounting: Panel Mount
Line Side Wire Range: 350 kcmil-6 AWG
Output Wire Range: 4-14 AWG
Composition: Phenolic
Approvals: CE, CSA, UL
