Product Description

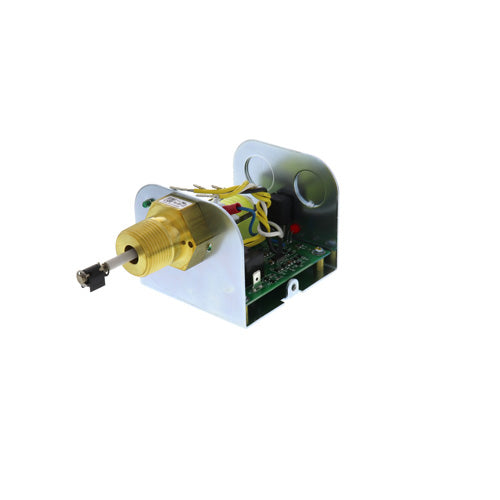

Enhance the safety of your residential or commercial hot water boilers with the McDonnell & Miller 144676 Low Water Cut-Off, model RB-122-E. This unit, designed for easy installation and operation, offers efficient monitoring of your boiler's water levels.
Equipped with red and green LEDs to indicate power status and low water conditions respectively.
Features automatic reset functions and does not require blow-down.
Its 20,000 Ohm probe sensitivity ensures precise water level detection.
Technical Specifications
Power: 120 VAC
Connection Type: NPT
Dimensions: 3-13/16 in L x 3-3/16 in W x 2-3/4 in H
Amperage: 5.8 A at 120 VAC Load Switching
Pressure Rating: 160 psi
Temperature Range: up to 250 degrees F for water, 120 degrees F ambient
Certifications: UL listed, CSA certified
Includes: Test Button
Product DescriptionEnhance the safety of your residential or commercial hot water boilers with the McDonnell & Miller 144676 Low Water Cut-Off, model RB-122-E. This unit, designed for easy installation and operation, offers efficient monitoring of your boiler's water levels.
Equipped with red and green LEDs to indicate power status and low water conditions respectively.
Features automatic reset functions and does not require blow-down.
Its 20,000 Ohm probe sensitivity ensures precise water level detection.
Technical Specifications
Power: 120 VAC
Connection Type: NPT
Dimensions: 3-13/16 in L x 3-3/16 in W x 2-3/4 in H
Amperage: 5.8 A at 120 VAC Load Switching
Pressure Rating: 160 psi
Temperature Range: up to 250 degrees F for water, 120 degrees F ambient
Certifications: UL listed, CSA certified
Includes: Test Button
Vendor: MCDONNELL & MILLER
Vendor Raw: MCDONNELL & MILLER
Product Type: CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: In Stock
Power: 120 VAC
Connection Type: NPT
Dimensions: 3-13/16 in L x 3-3/16 in W x 2-3/4 in H
Amperage: 5.8 A at 120 VAC Load Switching
Pressure Rating: 160 psi
Temperature Range: up to 250 degrees F for water, 120 degrees F ambient
Certifications: UL listed, CSA certified
Includes: Test Button
