Product Description

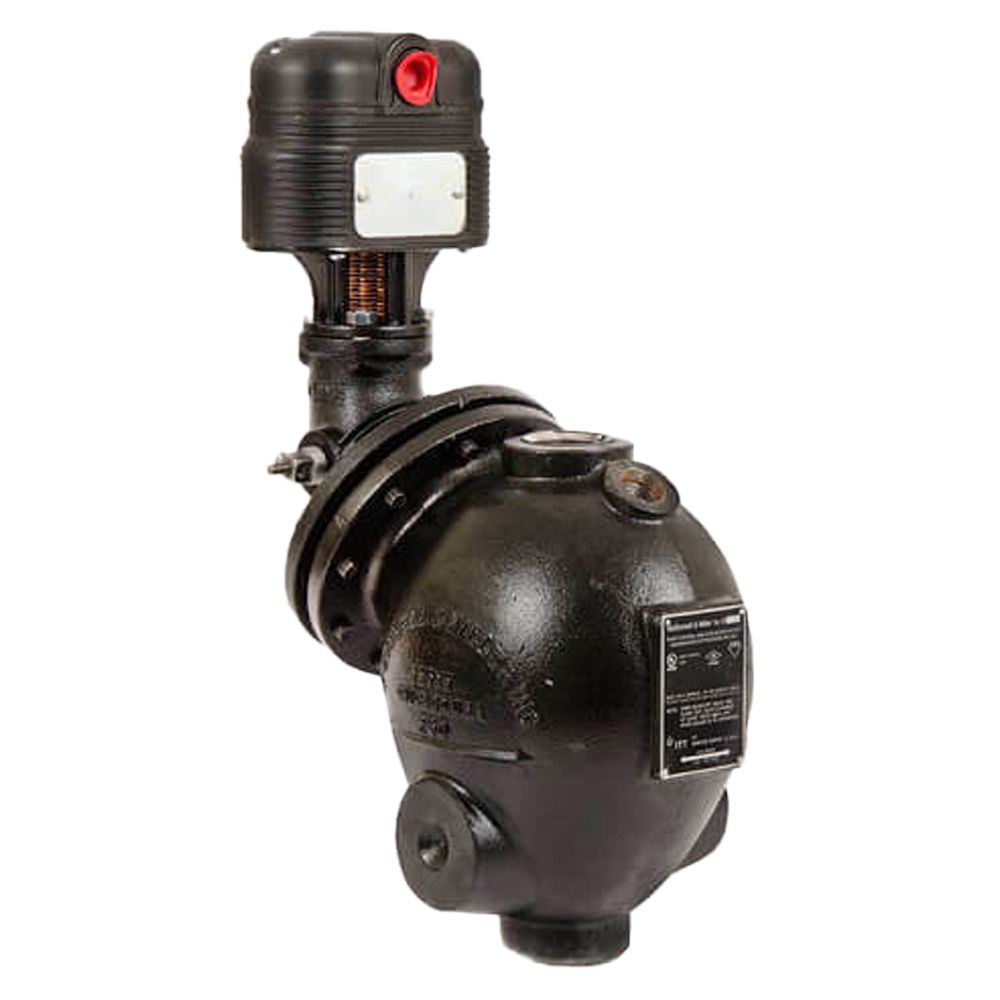

The McDonnell & Miller 165200 is a robust low water cut-off and pump controller designed to support the demanding needs of commercial and industrial steam boilers. This mechanical system ensures consistent water level, irrespective of the boiler pressure, and offers a maximum pressure limit of 250 psi.
Includes No.5 switch for effective operation
Boasts magnetic repulsion to negate the need for bellows
Equipped with a manual reset feature for heightened control
Product Highlights
The device is integral for maintaining the optimal operation of boilers of any steaming capacity. It includes a 7B switch which provides a 135 Ohm proportional control signal to keep the water level consistent.
Product Information
Standard Information
Brand: McDonnell & Miller
MPN: 165200
Series: 94
Technical Specifications
Pressure Rating: 250 psi
VA Rating: 345 VA at 120 or 240 VAC
Dimensions: 18-13/16 inches Height
Standards/Certifications: UL listed, CSA certified, FM approved
Applications: For commercial and industrial low or high pressure steam boilers
Product Description
The McDonnell & Miller 165200 is a robust low water cut-off and pump controller designed to support the demanding needs of commercial and industrial steam boilers. This mechanical system ensures consistent water level, irrespective of the boiler pressure, and offers a maximum pressure limit of 250 psi.
Includes No.5 switch for effective operation
Boasts magnetic repulsion to negate the need for bellows
Equipped with a manual reset feature for heightened control
Product HighlightsThe device is integral for maintaining the optimal operation of boilers of any steaming capacity. It includes a 7B switch which provides a 135 Ohm proportional control signal to keep the water level consistent.Product InformationStandard Information
Brand: McDonnell & Miller
MPN: 165200
Series: 94
Technical Specifications
Pressure Rating: 250 psi
VA Rating: 345 VA at 120 or 240 VAC
Dimensions: 18-13/16 inches Height
Standards/Certifications: UL listed, CSA certified, FM approved
Applications: For commercial and industrial low or high pressure steam boilers
Vendor: MCDONNELL & MILLER
Vendor Raw: MCDONNELL & MILLER
Product Type: CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: In Stock
Brand: McDonnell & Miller
MPN: 165200
Series: 94
Pressure Rating: 250 psi
VA Rating: 345 VA at 120 or 240 VAC
Dimensions: 18-13/16 inches Height
Standards/Certifications: UL listed, CSA certified, FM approved
Applications: For commercial and industrial low or high pressure steam boilers
