Product Description

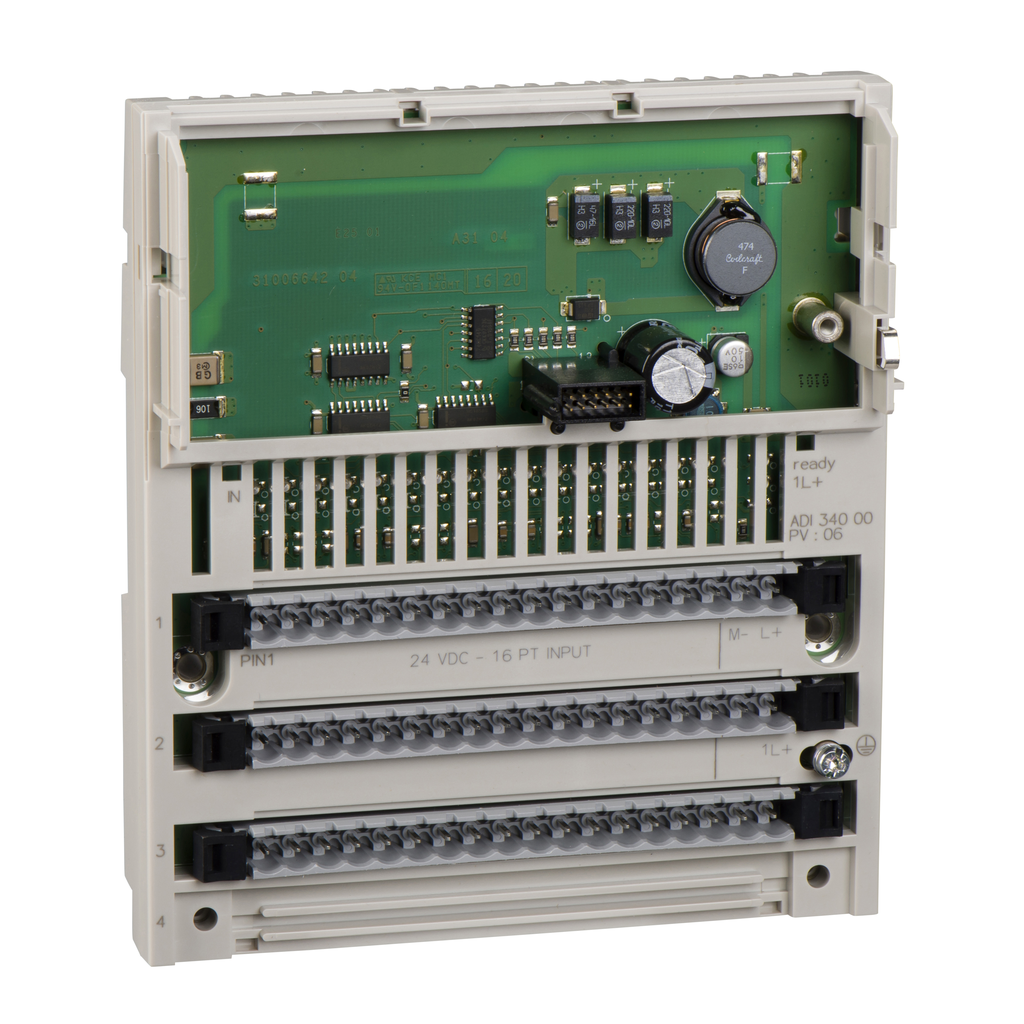

Schneider Electric introduces the 170ADI34000 discrete input module. This device is designed for Modicon Momentum systems. It features 16 discrete inputs that operate on a twenty-four volt direct current power supply.
16 discrete inputs
Operates at 24 VDC
Compatible with Modicon Momentum systems
Product Highlights
The Schneider Electric 170ADI34000 input module is ideal for controlling various industrial applications. Its fast response time of 2.2 milliseconds for state changes enhances operational efficiency. This module is designed for straightforward installation, providing reliable performance in various environments.
Product Information
Standard Information
Brand: Schneider Electric
Manufacturer: Square-D / Schneider
Technical Specifications
Catalog Number: 170ADI34000
Power Supply: 24 VDC
Current: 250 mA
Depth: 1.87 inches
Width: 125 mm
Height: 141.5 mm
Weight: 0.42 lb
Response Time: 2.2 ms from state 0 to state 1; 3.3 ms from state 1 to state 0
Certifications: CSA, FM Class 1 Division 2, UL
Country of Origin: France
Warranty Length: 18 months
Temperature Rating: 0-60 degrees Celsius
Storage Temperature: -40-85 degrees Celsius
Product Description
Schneider Electric introduces the 170ADI34000 discrete input module. This device is designed for Modicon Momentum systems. It features 16 discrete inputs that operate on a twenty-four volt direct current power supply.
16 discrete inputs
Operates at 24 VDC
Compatible with Modicon Momentum systems
Product HighlightsThe Schneider Electric 170ADI34000 input module is ideal for controlling various industrial applications. Its fast response time of 2.2 milliseconds for state changes enhances operational efficiency. This module is designed for straightforward installation, providing reliable performance in various environments.Product InformationStandard Information
Brand: Schneider Electric
Manufacturer: Square-D / Schneider
Technical Specifications
Catalog Number: 170ADI34000
Power Supply: 24 VDC
Current: 250 mA
Depth: 1.87 inches
Width: 125 mm
Height: 141.5 mm
Weight: 0.42 lb
Response Time: 2.2 ms from state 0 to state 1; 3.3 ms from state 1 to state 0
Certifications: CSA, FM Class 1 Division 2, UL
Country of Origin: France
Warranty Length: 18 months
Temperature Rating: 0-60 degrees Celsius
Storage Temperature: -40-85 degrees Celsius
Vendor: SCHNEIDER ELECTRIC
Vendor Raw: SCHNEIDER ELECTRIC
Product Type: CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: Out Of Stock
Brand: Schneider Electric
Manufacturer: Square-D / Schneider
Catalog Number: 170ADI34000
Power Supply: 24 VDC
Current: 250 mA
Depth: 1.87 inches
Width: 125 mm
Height: 141.5 mm
Weight: 0.42 lb
Response Time: 2.2 ms from state 0 to state 1; 3.3 ms from state 1 to state 0
Certifications: CSA, FM Class 1 Division 2, UL
Country of Origin: France
Warranty Length: 18 months
Temperature Rating: 0-60 degrees Celsius
Storage Temperature: -40-85 degrees Celsius
