Product Description

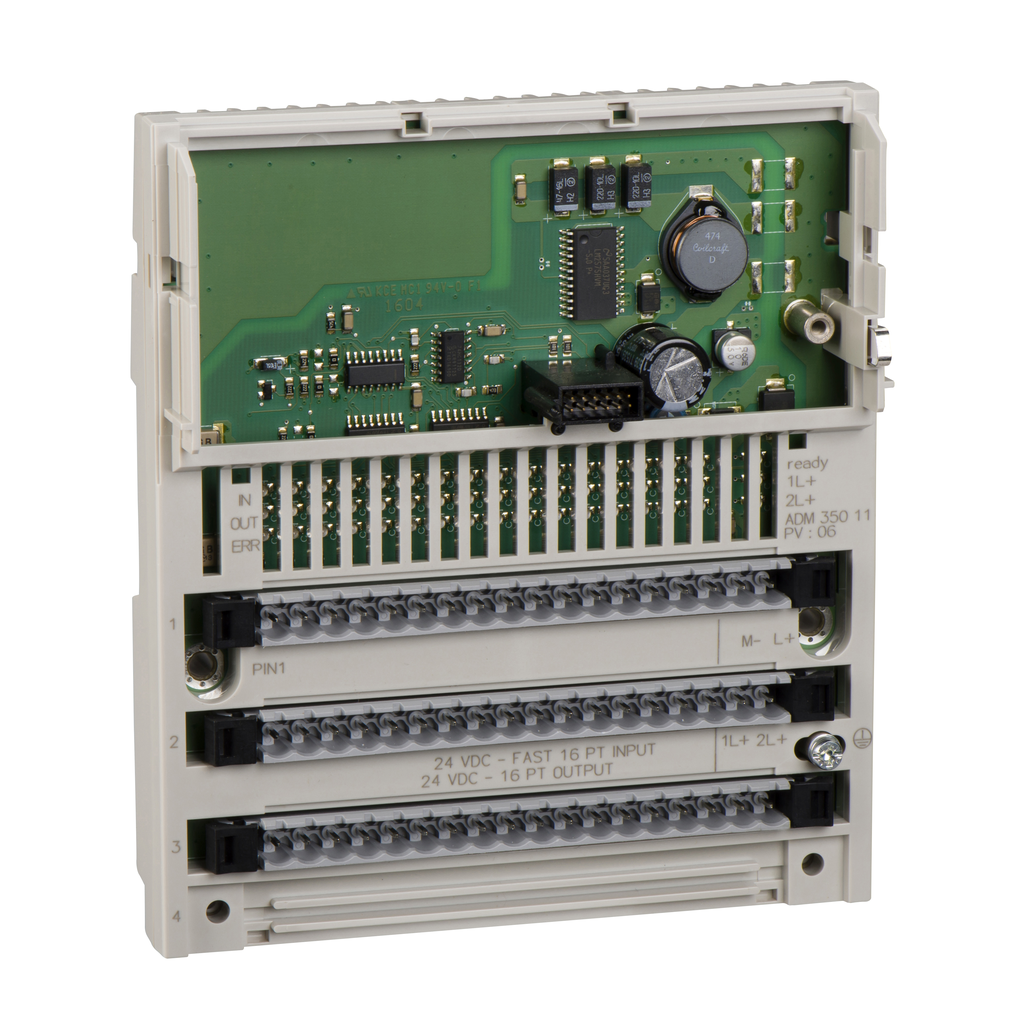

The Schneider Electric 170ADM35010 is a discrete I/O module designed for use in various control systems. It is part of the Modicon Momentum range, featuring 16 inputs and 16 outputs configured for solid state logic. The module operates at a rated supply voltage of twenty-four volts DC and consumes a maximum current of two hundred fifty milliamps. With overall dimensions of one hundred twenty-five millimeters in width, forty-seven point five millimeters in depth, and one hundred forty-one point five millimeters in height, it fits seamlessly into many control environments.
Rated supply voltage of 24V DC
16 inputs and 16 outputs for flexibility
Compatible with various control systems
Product Highlights
This module is ideal for applications in infrastructures, energy management, material handling, and simple machine control. It offers CE, CSA, and UL certifications, ensuring compliance with important industry standards.
Product Information
Standard Information
Catalog Number: 170ADM35010
Brand: Schneider Electric
Technical Specifications
Type: Discrete solid state I/O base DC
Weight: 0.2 kg
Current: 250 mA
Power Supply: 24 VDC
Response Time: < 0.1 ms from state 0 to state 1 on output
Certifications: CSA, UL
Country of Origin: Indonesia
Temperature Rating: 0-60 degrees C
Product DescriptionThe Schneider Electric 170ADM35010 is a discrete I/O module designed for use in various control systems. It is part of the Modicon Momentum range, featuring 16 inputs and 16 outputs configured for solid state logic. The module operates at a rated supply voltage of twenty-four volts DC and consumes a maximum current of two hundred fifty milliamps. With overall dimensions of one hundred twenty-five millimeters in width, forty-seven point five millimeters in depth, and one hundred forty-one point five millimeters in height, it fits seamlessly into many control environments.
Rated supply voltage of 24V DC
16 inputs and 16 outputs for flexibility
Compatible with various control systems
Product HighlightsThis module is ideal for applications in infrastructures, energy management, material handling, and simple machine control. It offers CE, CSA, and UL certifications, ensuring compliance with important industry standards.Product InformationStandard Information
Catalog Number: 170ADM35010
Brand: Schneider Electric
Technical Specifications
Type: Discrete solid state I/O base DC
Weight: 0.2 kg
Current: 250 mA
Power Supply: 24 VDC
Response Time: < 0.1 ms from state 0 to state 1 on output
Certifications: CSA, UL
Country of Origin: Indonesia
Temperature Rating: 0-60 degrees C
