Product Description

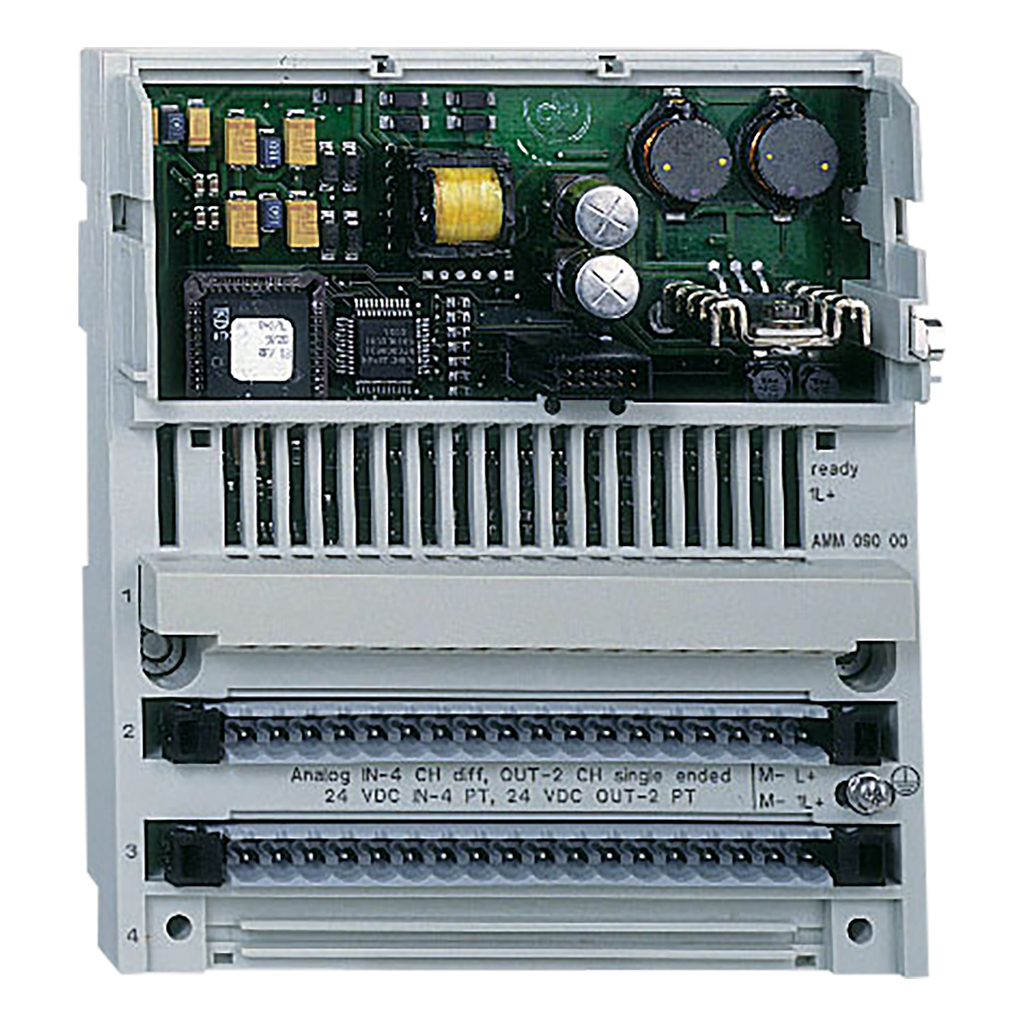

Schneider Electric 170AMM09000 is part of the Modicon Momentum range, designed for distributed control systems. This module features eight input/output options, including two discrete outputs, four discrete inputs, four analog inputs, and two analog outputs. It operates at a supply voltage of twenty-four volts DC, with a current of two hundred milliamperes. The device has a maximum power dissipation of six watts and includes two connectors for removable terminal blocks.
Operating voltage: 24 VDC
Includes multiple input/output options
Compact dimensions: 141.5 mm width, 47.5 mm depth, 125 mm height
Product Highlights
This module is ideal for applications in energy management, material handling, and basic machine control, making it a versatile choice for various industries.
Product Information
Standard Information
Catalog Number: 170AMM09000
Manufacturer: Schneider Electric
Technical Specifications
Brand: Schneider Electric
Weight: 0.24 kg
Depth: 47.5 mm
Width: 141.5 mm
Height: 125 mm
Input/Output Types: Analog, Discrete
Power Supply: 24 VDC
Response Time: Less than 0.1 ms (discrete output states)
Certifications: CE, FM Class 1 Division 2, CSA, UL
Temperature Rating: 0-60 degrees C
Country of Origin: Indonesia
