Product Description

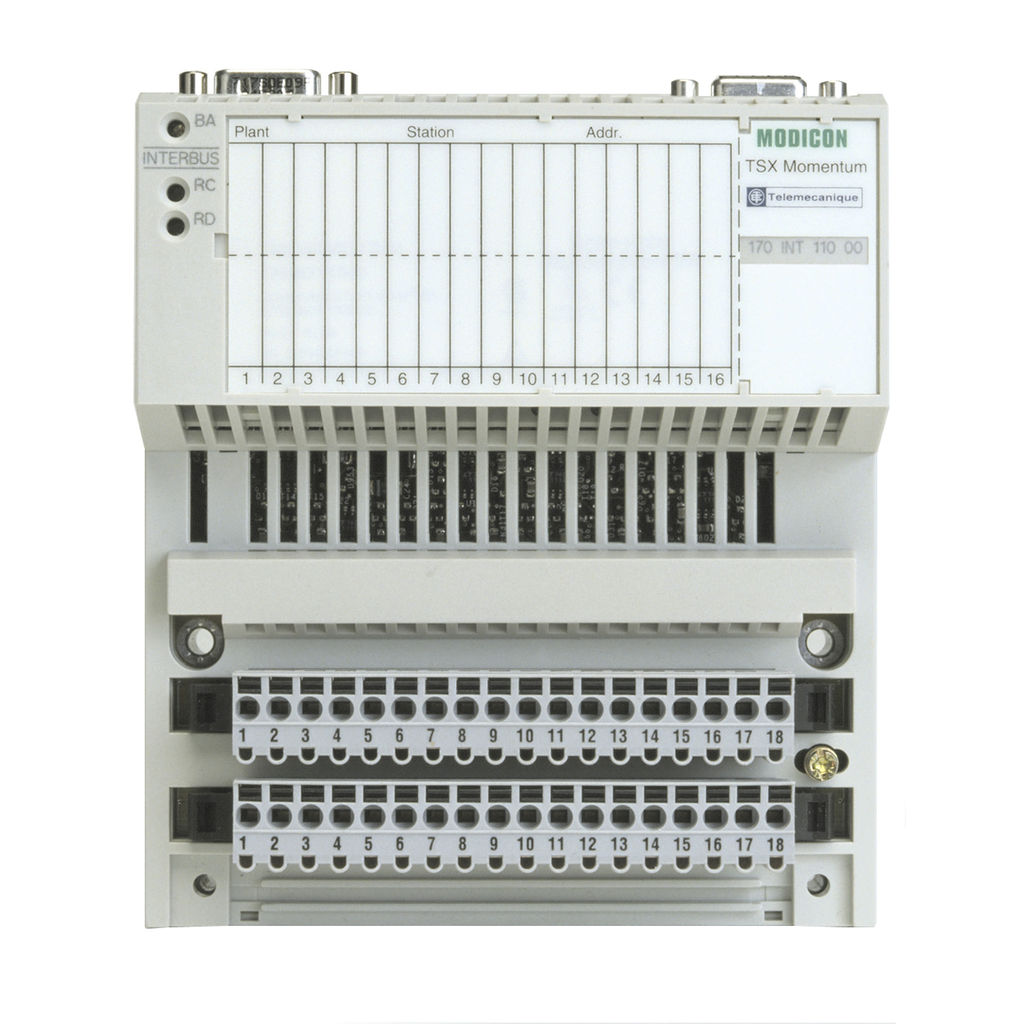

Schneider Electric 170INT11000 is a communication adapter designed for control applications. This device is part of the Modicon Momentum range, supporting distributed control architecture. It features twisted pair cable transmission with a data rate of five hundred kilobits per second. The adapter can connect through two D-sub connectors for Interbus, ensuring reliable communication in various industrial settings. The product is IP20 rated and commonly used in infrastructure, energy, and material handling applications.
Supports Interbus communication with ring topology
Rated for IP20 environments
Features master/slave communication method
Product Highlights
This communication adapter is a key component for effective industrial control systems.
Product Information
Standard Information
Brand: Schneider Electric
Manufacturer: Square-D / Schneider
Technical Specifications
Catalog Number: 170INT11000
Weight: 0.15 lb
Enclosure Rating: IP20
Power Supply: From I/O Base
Certifications: CE, CSA, FM Class 1 Division 2, UL
Temperature Rating: 0-60 degrees C
Country of Origin: France
Warranty Length: 18 months
Product DescriptionSchneider Electric 170INT11000 is a communication adapter designed for control applications. This device is part of the Modicon Momentum range, supporting distributed control architecture. It features twisted pair cable transmission with a data rate of five hundred kilobits per second. The adapter can connect through two D-sub connectors for Interbus, ensuring reliable communication in various industrial settings. The product is IP20 rated and commonly used in infrastructure, energy, and material handling applications.
Supports Interbus communication with ring topology
Rated for IP20 environments
Features master/slave communication method
Product HighlightsThis communication adapter is a key component for effective industrial control systems.Product InformationStandard Information
Brand: Schneider Electric
Manufacturer: Square-D / Schneider
Technical Specifications
Catalog Number: 170INT11000
Weight: 0.15 lb
Enclosure Rating: IP20
Power Supply: From I/O Base
Certifications: CE, CSA, FM Class 1 Division 2, UL
Temperature Rating: 0-60 degrees C
Country of Origin: France
Warranty Length: 18 months
Vendor: SCHNEIDER ELECTRIC
Vendor Raw: SCHNEIDER ELECTRIC
Product Type: CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: Out Of Stock
Brand: Schneider Electric
Manufacturer: Square-D / Schneider
Catalog Number: 170INT11000
Weight: 0.15 lb
Enclosure Rating: IP20
Power Supply: From I/O Base
Certifications: CE, CSA, FM Class 1 Division 2, UL
Temperature Rating: 0-60 degrees C
Country of Origin: France
Warranty Length: 18 months
