Product Description

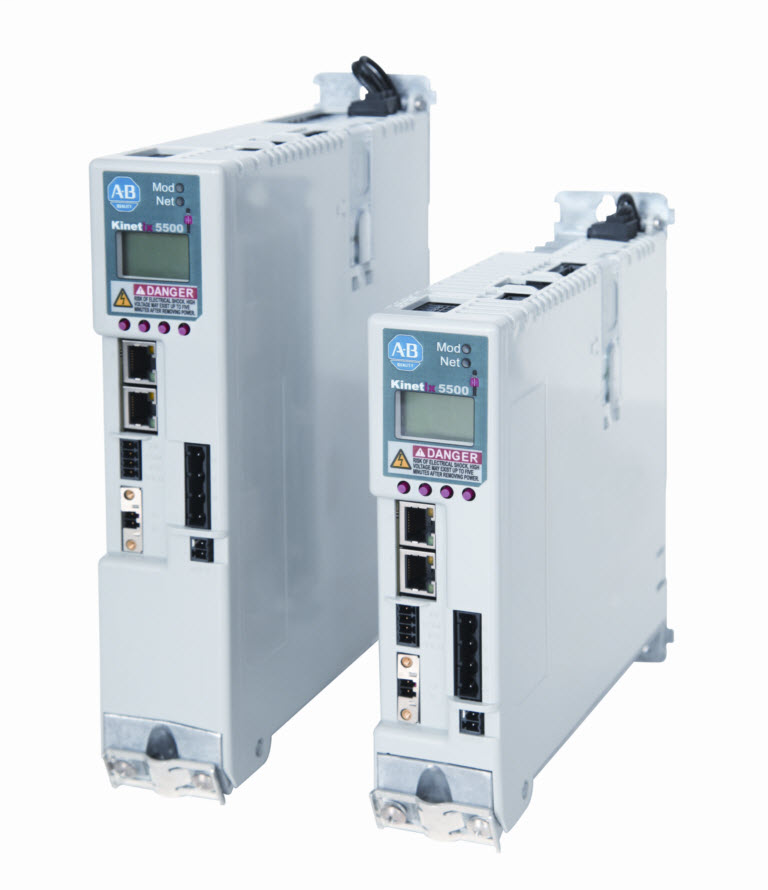

Allen-Bradley 2198-H070-ERS is a 3-phase servo drive that operates within a voltage range of one hundred ninety to five hundred twenty-eight VAC. This model supports a maximum output current of fifty-seven point five amps, making it suitable for various automation tasks.
Safe Torque-off certified at ISO 13849-1 PLd/SIL 2
Compatible with both servo and induction motors
Provides dual-port Ethernet connectivity
Product Highlights
This servo drive features innovative technology for efficient motor control and superior performance in industrial applications.
Product Information
Standard Information
Type: Servo Drive
Sub Brand: Kinetix
Technical Specifications
Input Voltage: 195 - 528 VAC
Input Current: 23.7 A Main AC, 71.1 A Peak AC
Power Rating: 7 kW at 195 - 264 V, 14.6 kW at 324 - 528 V
Output Current: 57.5 A
Temperature Rating: 0 - 50 degrees C
Environmental Conditions: 5 - 95% Non Condensing Humidity
Control Type: EtherNet/IP
Applications: Automated Assembly, Automated Inspection, Food and Beverage, Material Handling, Packaging, Pharmaceutical and Printing
Product DescriptionAllen-Bradley 2198-H070-ERS is a 3-phase servo drive that operates within a voltage range of one hundred ninety to five hundred twenty-eight VAC. This model supports a maximum output current of fifty-seven point five amps, making it suitable for various automation tasks.
Safe Torque-off certified at ISO 13849-1 PLd/SIL 2
Compatible with both servo and induction motors
Provides dual-port Ethernet connectivity
Product HighlightsThis servo drive features innovative technology for efficient motor control and superior performance in industrial applications.Product InformationStandard Information
Type: Servo Drive
Sub Brand: Kinetix
Technical Specifications
Input Voltage: 195 - 528 VAC
Input Current: 23.7 A Main AC, 71.1 A Peak AC
Power Rating: 7 kW at 195 - 264 V, 14.6 kW at 324 - 528 V
Output Current: 57.5 A
Temperature Rating: 0 - 50 degrees C
Environmental Conditions: 5 - 95% Non Condensing Humidity
Control Type: EtherNet/IP
Applications: Automated Assembly, Automated Inspection, Food and Beverage, Material Handling, Packaging, Pharmaceutical and Printing
Vendor: ALLEN-BRADLEY
Vendor Raw: ALLEN-BRADLEY
Product Type: CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: Out Of Stock
Type: Servo Drive
Sub Brand: Kinetix
Input Voltage: 195 - 528 VAC
Input Current: 23.7 A Main AC, 71.1 A Peak AC
Power Rating: 7 kW at 195 - 264 V, 14.6 kW at 324 - 528 V
Output Current: 57.5 A
Temperature Rating: 0 - 50 degrees C
Environmental Conditions: 5 - 95% Non Condensing Humidity
Control Type: EtherNet/IP
Applications: Automated Assembly, Automated Inspection, Food and Beverage, Material Handling, Packaging, Pharmaceutical and Printing
