Product Description

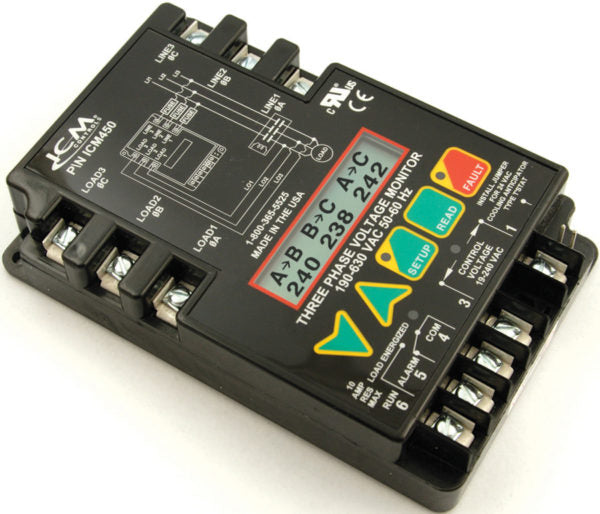

The ICM CONTROLS 24-ICM450 is a 3-phase line voltage monitor that safeguards motors against voltage faults. It accurately monitors 3-phase true RMS voltage. The device includes a backlit LCD to assist with setup and diagnostics. Factory calibrated, it retains fault memory for up to twenty-five faults.
Monitors 3-phase true RMS voltage.
Features a backlit LCD for setup and diagnostics.
Protects against high/low voltage, voltage unbalance, phase loss, and phase reversal.
Product Highlights
This monitor simplifies configuration with adjustable variables and menu options available in English or Spanish.
Product Information
Standard Information
Voltage Range: 277 VAC @ 10A maximum
Frequency: 50/60 Hz
Technical Specifications
Load Side Monitoring: Optional
Control Voltage: 18 - 240 VAC
Output Relay Rating: 250 VAC at 10 A
Relay Type: SPDT
Operating Temperature: -40°F to +149°F (-40°C to +65°C)
Storage Temperature: -40°F to +185°F (-40°C to +85°C)
Mounting Type: Surface mount using (2) #8 screws
Terminations: 1/4 quick connects
Weight: 12 ounces (341 grams)
Communication Protocol: ModBus
Product DescriptionThe ICM CONTROLS 24-ICM450 is a 3-phase line voltage monitor that safeguards motors against voltage faults. It accurately monitors 3-phase true RMS voltage. The device includes a backlit LCD to assist with setup and diagnostics. Factory calibrated, it retains fault memory for up to twenty-five faults.
Monitors 3-phase true RMS voltage.
Features a backlit LCD for setup and diagnostics.
Protects against high/low voltage, voltage unbalance, phase loss, and phase reversal.
Product HighlightsThis monitor simplifies configuration with adjustable variables and menu options available in English or Spanish.Product InformationStandard Information
Voltage Range: 277 VAC @ 10A maximum
Frequency: 50/60 Hz
Technical Specifications
Load Side Monitoring: Optional
Control Voltage: 18 - 240 VAC
Output Relay Rating: 250 VAC at 10 A
Relay Type: SPDT
Operating Temperature: -40°F to +149°F (-40°C to +65°C)
Storage Temperature: -40°F to +185°F (-40°C to +85°C)
Mounting Type: Surface mount using (2) #8 screws
Terminations: 1/4 quick connects
Weight: 12 ounces (341 grams)
Communication Protocol: ModBus
Vendor: ICM CONTROLS
Vendor Raw: ICM CONTROLS
Product Type: FURNACE CONTROL BOARDS
Availability Text: In Stock
Voltage Range: 277 VAC @ 10A maximum
Frequency: 50/60 Hz
Load Side Monitoring: Optional
Control Voltage: 18 - 240 VAC
Output Relay Rating: 250 VAC at 10 A
Relay Type: SPDT
Operating Temperature: -40°F to +149°F (-40°C to +65°C)
Storage Temperature: -40°F to +185°F (-40°C to +85°C)
Mounting Type: Surface mount using (2) #8 screws
Terminations: 1/4 quick connects
Weight: 12 ounces (341 grams)
Communication Protocol: ModBus
