Product Description

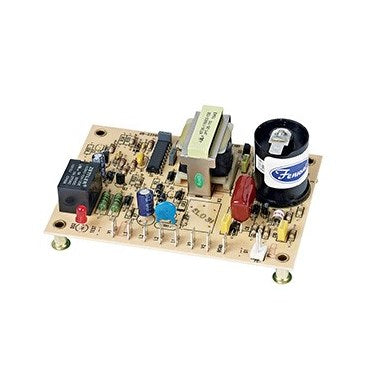

The Fenwal 35-704600-005 is a direct spark ignition control designed for reliable operation in HVAC systems. Ideal for controlling gas valves and igniting LP or natural gas. It operates at 120 volts and offers features like multiple ignition tries and an automatic one-hour reset.
Designed for controlling gas valves and igniting LP or natural gas
Microprocessor circuit design ensures precise operation
Diagnostic LED and flame current test pins for troubleshooting
Product Highlights
This ignition control features multiple enclosure configurations to suit various industrial environments, including dust and object protection, and potted versions for washdown areas or extreme vibration conditions. Offers two wiring options and trial for ignition times ranging from four to fifteen seconds.
Technical Specifications
Weight: 0.72 pounds
Enclosure Options: Case, Open Board, Potted
Wiring Options: 1/4 inch quick connects, multi-pin connector
Ignition Trials: 1 and 3 tries
Ignition Times: 4, 7, 10, 15 seconds customization available
Flame Sense Options: Single spark and remote sense
Temperature Range: -40°F to 175°F
Product DescriptionThe Fenwal 35-704600-005 is a direct spark ignition control designed for reliable operation in HVAC systems. Ideal for controlling gas valves and igniting LP or natural gas. It operates at 120 volts and offers features like multiple ignition tries and an automatic one-hour reset.
Designed for controlling gas valves and igniting LP or natural gas
Microprocessor circuit design ensures precise operation
Diagnostic LED and flame current test pins for troubleshooting
Product HighlightsThis ignition control features multiple enclosure configurations to suit various industrial environments, including dust and object protection, and potted versions for washdown areas or extreme vibration conditions. Offers two wiring options and trial for ignition times ranging from four to fifteen seconds.Technical Specifications
Weight: 0.72 pounds
Enclosure Options: Case, Open Board, Potted
Wiring Options: 1/4 inch quick connects, multi-pin connector
Ignition Trials: 1 and 3 tries
Ignition Times: 4, 7, 10, 15 seconds customization available
Flame Sense Options: Single spark and remote sense
Temperature Range: -40°F to 175°F
Vendor: LAARS
Vendor Raw: LAARS
Product Type: IGNITION CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: In Stock
Weight: 0.72 pounds
Enclosure Options: Case, Open Board, Potted
Wiring Options: 1/4 inch quick connects, multi-pin connector
Ignition Trials: 1 and 3 tries
Ignition Times: 4, 7, 10, 15 seconds customization available
Flame Sense Options: Single spark and remote sense
Temperature Range: -40°F to 175°F
