Product Description

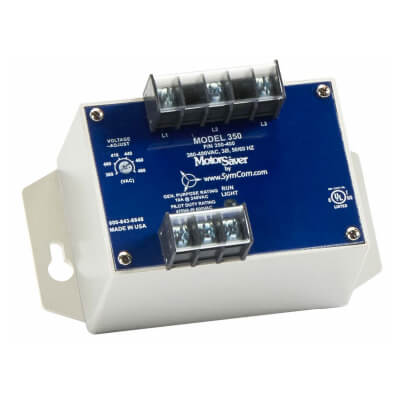

The Littelfuse 35020028 is a 3-phase voltage monitor designed for monitoring and protecting three-phase electrical systems in a variety of settings, from industrial plants to data centers. Optimized for 190 to 240V applications, this robust device safeguards your equipment by continuously measuring voltage levels and detecting abnormalities.
Provides real-time monitoring of voltage across three phases.
Features adjustable thresholds to set specific voltage limits.
Includes LED indicators for clear, immediate visual feedback on voltage status.
Product Highlights
Equipped with adjustable restart and trip delay settings, this monitor ensures your systems operate within safe voltage ranges, preventing potential damage and downtime.
Product Information
Standard Information
Input Voltage: 190 to 240VAC
Power Consumption: 5W
Frequency: 50/60Hz
Technical Specifications
Output Load Rating: General Purpose: 2 - 15A and 1hp at 240VAC
Restart Delay: Adjustable from 2 to 300 seconds
Mounting Type: #8 screws
Operating Temperatures: -40 to 158 degrees Fahrenheit
Dimensions: 2.93 inches height x 5.27 inches width x 2.95 inches depth
Product DescriptionThe Littelfuse 35020028 is a 3-phase voltage monitor designed for monitoring and protecting three-phase electrical systems in a variety of settings, from industrial plants to data centers. Optimized for 190 to 240V applications, this robust device safeguards your equipment by continuously measuring voltage levels and detecting abnormalities.
Provides real-time monitoring of voltage across three phases.
Features adjustable thresholds to set specific voltage limits.
Includes LED indicators for clear, immediate visual feedback on voltage status.
Product Highlights
Equipped with adjustable restart and trip delay settings, this monitor ensures your systems operate within safe voltage ranges, preventing potential damage and downtime.
Product Information
Standard Information
Input Voltage: 190 to 240VAC
Power Consumption: 5W
Frequency: 50/60Hz
Technical Specifications
Output Load Rating: General Purpose: 2 - 15A and 1hp at 240VAC
Restart Delay: Adjustable from 2 to 300 seconds
Mounting Type: #8 screws
Operating Temperatures: -40 to 158 degrees Fahrenheit
Dimensions: 2.93 inches height x 5.27 inches width x 2.95 inches depth
Vendor: LITTELFUSE
Vendor Raw: LITTELFUSE
Product Type: CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: Out Of Stock
Input Voltage: 190 to 240VAC
Power Consumption: 5W
Frequency: 50/60Hz
Output Load Rating: General Purpose: 2 - 15A and 1hp at 240VAC
Restart Delay: Adjustable from 2 to 300 seconds
Mounting Type: #8 screws
Operating Temperatures: -40 to 158 degrees Fahrenheit
Dimensions: 2.93 inches height x 5.27 inches width x 2.95 inches depth
Tags: AI_Content, AI_Content_NEUCO, AI_Content_Republished_07_05, loc_2, Parcel, same_day_chicago
Source file: 35020028 - 3-phase-volt-mon-190-240v-ad.json.json
| Input Voltage | 190 to 240VAC |
|---|---|
| Power Consumption | 5W |
| Frequency | 50/60Hz |
| Output Load Rating | General Purpose: 2 - 15A and 1hp at 240VAC |
| Restart Delay | Adjustable from 2 to 300 seconds |
| Mounting Type | #8 screws |
| Operating Temperatures | -40 to 158 degrees Fahrenheit |
| Dimensions | 2.93 inches height x 5.27 inches width x 2.95 inches depth |
