Product Description

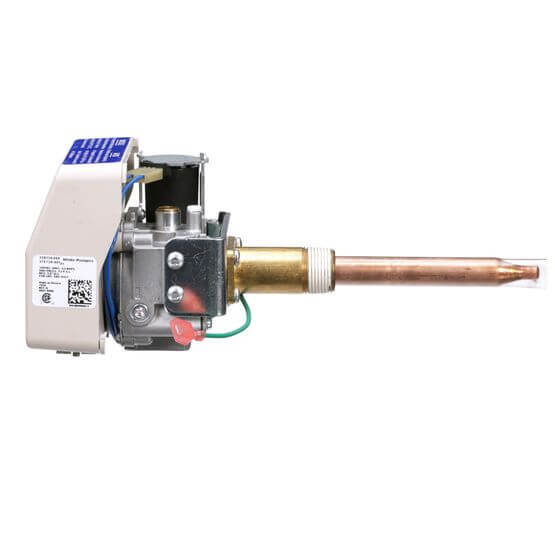

The White Rodgers 37E73A-922 is an Intelli-Vent Combined Gas Valve designed for use on power vented water heaters. This product effectively combines gas, ignition, and thermostat controls into a single unit, replacing the SW 64021 (37E73A-322).
Integrated gas, ignition, and thermostat control
Right angle configuration with half-inch N.P.T. inlet and half-inch inverted flare outlet
Regulation range from twenty thousand to one hundred fifty thousand BTUs
Product Highlights
This valve features a temperature regulation range spanning from seventy degrees to one hundred sixty degrees Fahrenheit, making it suitable for various heating applications. Designed for natural gas, it includes specific pressure settings to ensure optimal operation.
Product Information
Standard Information
Brand: White Rodgers
Type: Gas Valve
Technical Specifications
MPN: 37E73A-922
Operating Voltage: 120 Vac, 60 Hz
Amperage: Inducer Motor 3.0 FLA, 4.0 LRA, Ignitor 2.0
Length: 1.72 inches
Regulator Setting: 3.5 inches W.C. Natural Gas
Temperature Range: 70°F - 160°F
Max Inlet Pressure: 1/2 PSI
Pressure Drop Capacity: 100,000 BTU/Hr.
Product DescriptionThe White Rodgers 37E73A-922 is an Intelli-Vent Combined Gas Valve designed for use on power vented water heaters. This product effectively combines gas, ignition, and thermostat controls into a single unit, replacing the SW 64021 (37E73A-322).
Integrated gas, ignition, and thermostat control
Right angle configuration with half-inch N.P.T. inlet and half-inch inverted flare outlet
Regulation range from twenty thousand to one hundred fifty thousand BTUs
Product HighlightsThis valve features a temperature regulation range spanning from seventy degrees to one hundred sixty degrees Fahrenheit, making it suitable for various heating applications. Designed for natural gas, it includes specific pressure settings to ensure optimal operation.Product InformationStandard Information
Brand: White Rodgers
Type: Gas Valve
Technical Specifications
MPN: 37E73A-922
Operating Voltage: 120 Vac, 60 Hz
Amperage: Inducer Motor 3.0 FLA, 4.0 LRA, Ignitor 2.0
Length: 1.72 inches
Regulator Setting: 3.5 inches W.C. Natural Gas
Temperature Range: 70°F - 160°F
Max Inlet Pressure: 1/2 PSI
Pressure Drop Capacity: 100,000 BTU/Hr.
Vendor: WHITE-RODGERS
Vendor Raw: WHITE-RODGERS
Product Type: IGNITION CONTROL BOARDS
Availability Text: In Stock
Brand: White Rodgers
Type: Gas Valve
MPN: 37E73A-922
Operating Voltage: 120 Vac, 60 Hz
Amperage: Inducer Motor 3.0 FLA, 4.0 LRA, Ignitor 2.0
Length: 1.72 inches
Regulator Setting: 3.5 inches W.C. Natural Gas
Temperature Range: 70°F - 160°F
Max Inlet Pressure: 1/2 PSI
Pressure Drop Capacity: 100,000 BTU/Hr.
