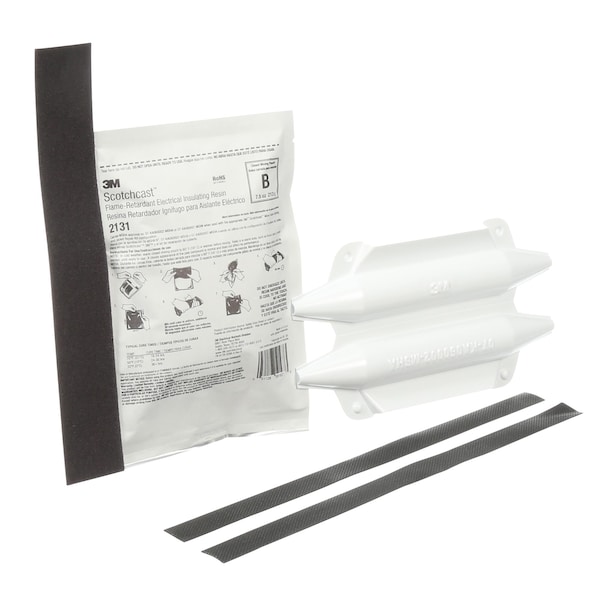

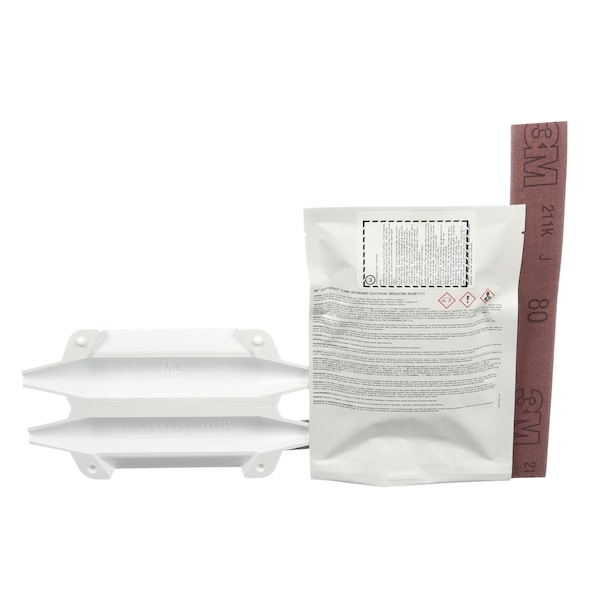

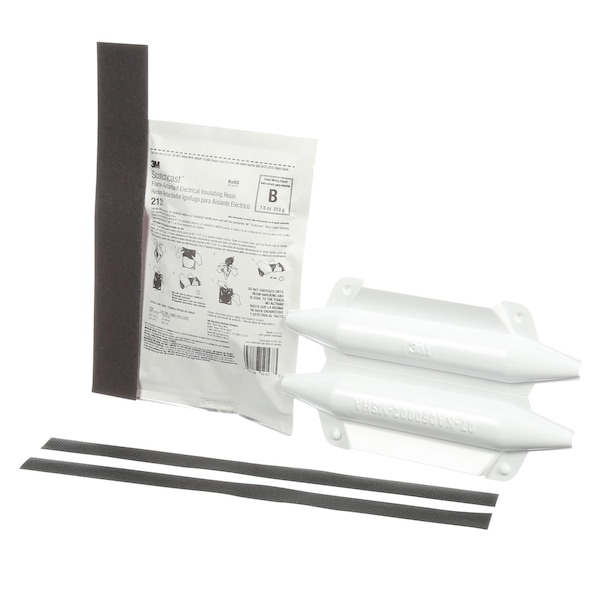

0.25 to 0.8-in O.D. insulation Flexible Power Cable Splice Kit
| Item | Resin Compound Splice Kit |
|---|---|
| Wire Range | 6 to 1/0 AWG |
| Material | Resin with Plastic EPDM Rubber Mold |
| Temp. Range | Up to 194 Degrees F |
| Includes | 1-Piece Removable Mold, Abrasive Cloth, Rubber-Splicing Tape 23, Scotchcast(TM) Compound 2131 |
| Color | Black |
| Max. Voltage | 1,000 V |
| Overall Length | 8 in |
| Max. Temp. | 194 deg F |
| Standards | MSHA Approved |
| Voltage Rating | 1000V |
| Maximum Operating Temperature | 194 deg F |
| Resin Material | Resin |
| Resistance Properties | Abrasion-Resistant |
| Maximum Wire Size | 1/0 AWG |
| RoHS Compliant | Yes |
| Termination Style | Splice |
| Number of Splices | 1 |
| Insulation Material | EPDM Rubber |
| Minimum Wire Size | 6 AWG |
| For Maximum Cable OD | 0.8 in |
| Barrel Length | Not Applicable |
| Maximum Voltage | 1,000 V |
| Number of Pieces | 3 |
| Compatible with Product Type | Power Cables |
| Package Quantity | 1 |
