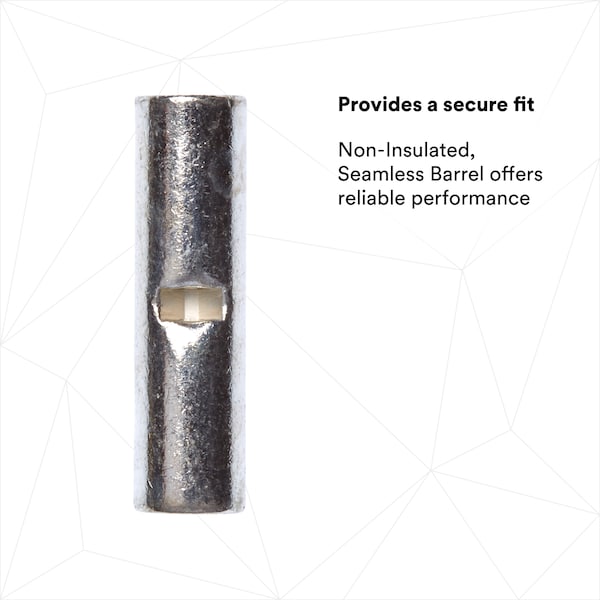

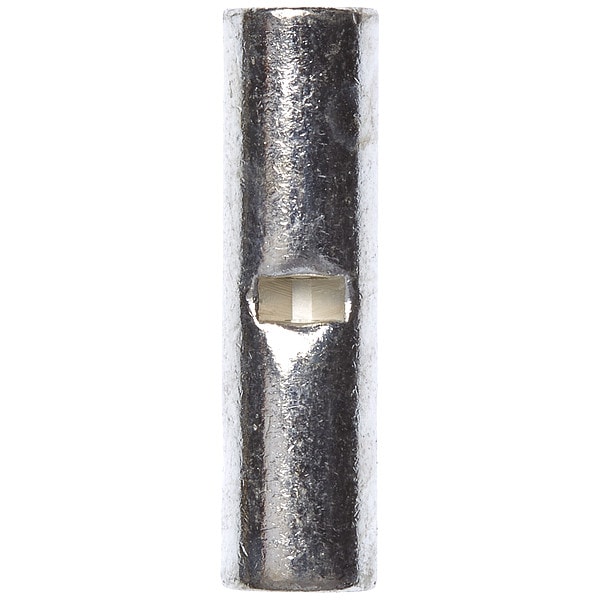

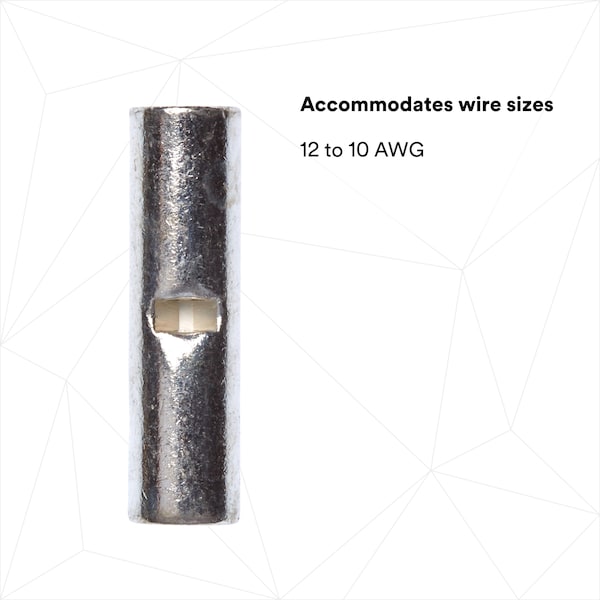

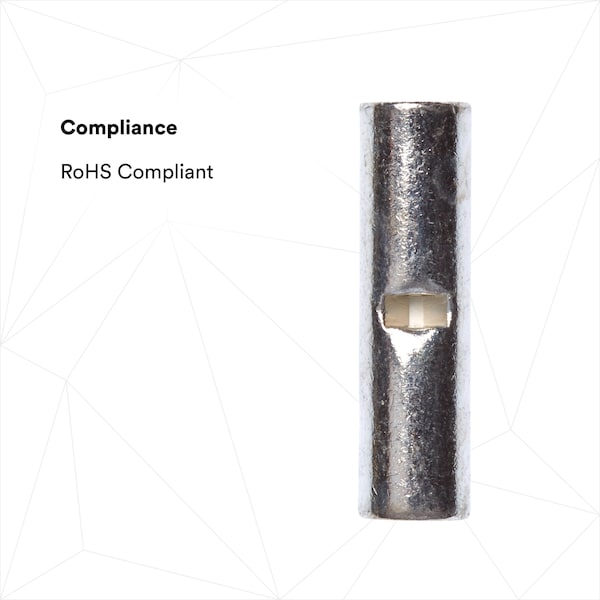

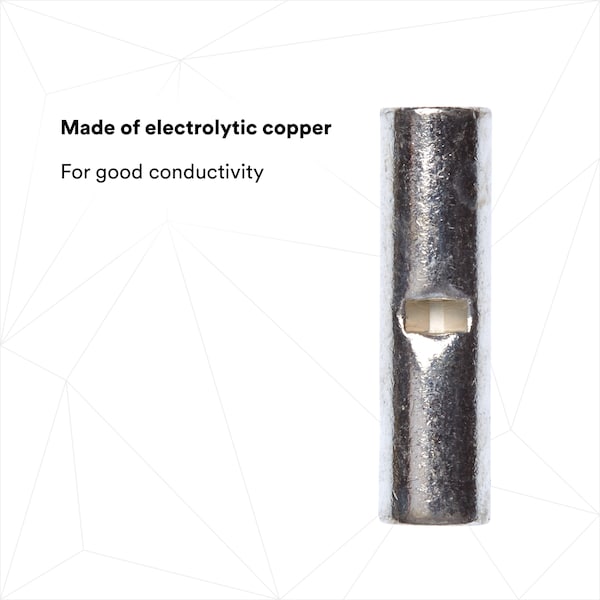

12-10 AWG Butt Splice Connector 500pk.
| Item | Splice Connector |
|---|---|
| Wire Range | 12 to 10 AWG |
| Insulation Type | Non-Insulated |
| Seam | Seamless |
| Connection Type | Crimp |
| Insulation Color | Bare |
| Max. Voltage | 600 V |
| Overall Length | 0.81 in |
| Max. Temp. | 347 deg F |
| Connector Type | Butt Splice |
| Barrel Inside Dia. | 0.142 in |
| Connection Material | Copper |
| Standards | CSA Certified, UL Listed |
| Maximum Wire Size | 10 AWG |
| Maximum Voltage | 600 V |
| Body Material | Copper |
| For Wire Type | Stranded |
| Seam Style | Seamless |
| Insulation Material | None |
| Contact Material | Copper |
| Compatible Installation Tool Model Number | TH-440, TH-450, TR-490 |
| Termination Style | Crimp |
| RoHS Compliant | Yes |
| Minimum Wire Size | 12 AWG |
| Body Finish | Tin Plated |
| Barrel Inside Diameter | 0.142 in |
| Maximum Operating Temperature | 347 deg F |
| Terminal Type | Butt Connectors |
| Product Color | Metal |
| Minimum Stud Diameter | 0.19 in |
| Maximum Operating Temperature (Celsius) | 105°C |
| Disconnect Type | Female |
| Package Quantity | 500 |
