Terminal de horquilla con bloqueo termocontraíble de calibre 12-10 para tornillo de #8, paquete de 250.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Seam | Brazed |
| Standards | CSA Certified, UL Listed |
| Tongue Width - Wire Connector | 0.32 in |
| Terminal Connection | Crimp |
| Terminal Type | Locking |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Item | Fork Terminal |
| Connection Type | Crimp |
| Overall Length | 1 in |
| Max. Temp. | 221 deg F |
| Maximum Voltage | 600 V |
| Tongue Width | 0.32 in |

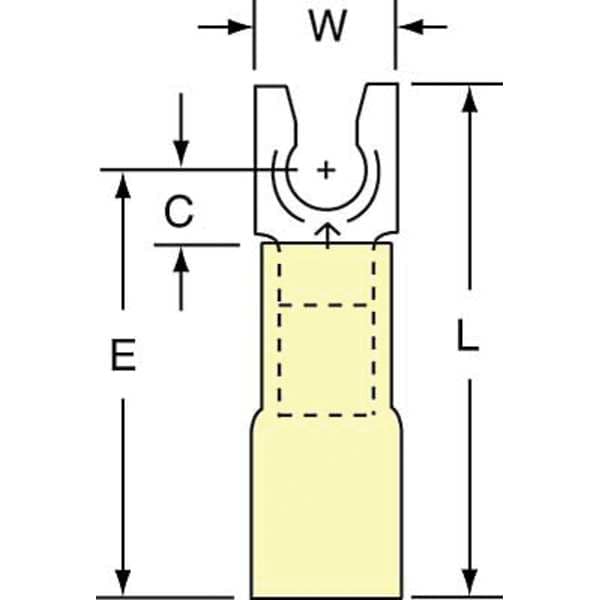

| Clearance (C) | 0.16 in |
| Minimum Conductor Size | 12 AWG |
| Barrel Length | 1/4 in |
| Stud Diameter | 0.164 in |
| Maximum Conductor Size | 10 AWG |
| Dimension E | 0.8 in |
| Barrel Inside Diameter | 0.135 in |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Seam Style | Brazed |
| Package Quantity | 250 |
