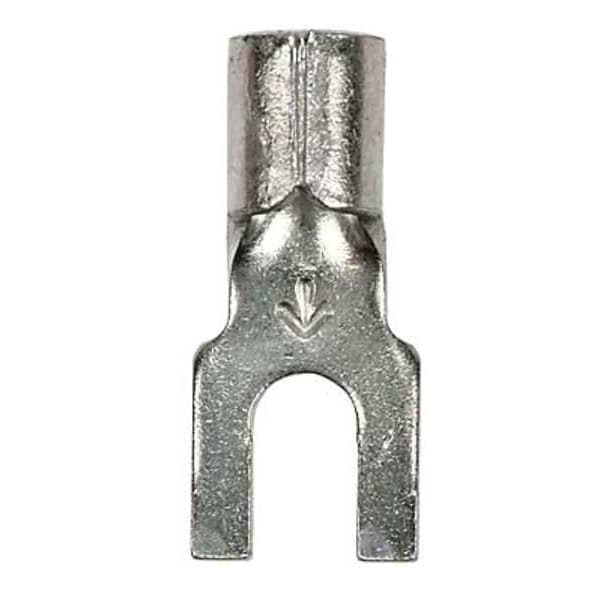

Terminales de bloque en forma de horquilla sin aislamiento de calibre 12-10 para perno #6, paquete de 500 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Yellow |
| Connection Material | Copper |
| Item | Fork Terminal |
| Terminal Type | Block |
| Standards | CSA Certified, UL Listed |
| Tongue Width - Wire Connector | 0.32 in |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Seam | Brazed |
| Overall Length | 0.73 in |
| Max. Temp. | 347 deg F |
| Max. Voltage | 600 V |
| Special Features | Beveled Mouth Offers Easy Insertion of Wires |
| Terminal Shape | Fork |
| Insulation Coverage | None |
| Maximum Wire Size | 10 AWG |
| Termination Style | Crimp |
| Barrel Length | 1/4 in |
| Tongue Thickness | 0.04 in |
| Insulation Material | None |
| Tongue Width | 0.32 in |
| Seam Style | Brazed |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 347 deg F |
| Contact Material | Copper |
| Minimum Wire Size | 12 AWG |
| RoHS Compliant | Yes |
| Barrel Inside Diameter | 0.135 in |
| Stud Diameter | 0.138 in |
| Clearance (C) | 0.29 in |
| Dimension E | 0.54 in |
| Package Quantity | 500 |
