Terminal de horquilla sin aislamiento de 12-10 AWG para perno de tamaño #10, paquete de 500 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Bare |
| Stud Size | #10 |
| Insulation Color | Bare |
| Terminal Type | Standard |
| Max. Voltage | 600 V |
| Max. Temp. | 900 deg F |
| Connection Material | Steel |
| Terminal Connection | Crimp |
| Overall Length | 0.73 in |
| Standards | CSA Certified, UL Listed |
| Item | Fork Terminal |
| Seam | Butted |
| Tongue Width - Wire Connector | 0.38 in |
| Connection Type | Crimp |
| Solution for | Wireless Network Infrastructure Accessories |
| Barrel Length | 1/4 in |
| Maximum Conductor Size | 10 AWG |
| Terminal Style | High Temp |
| Minimum Conductor Size | 12 AWG |
| Material | Copper |
| Insulation Material | Non-insulated |

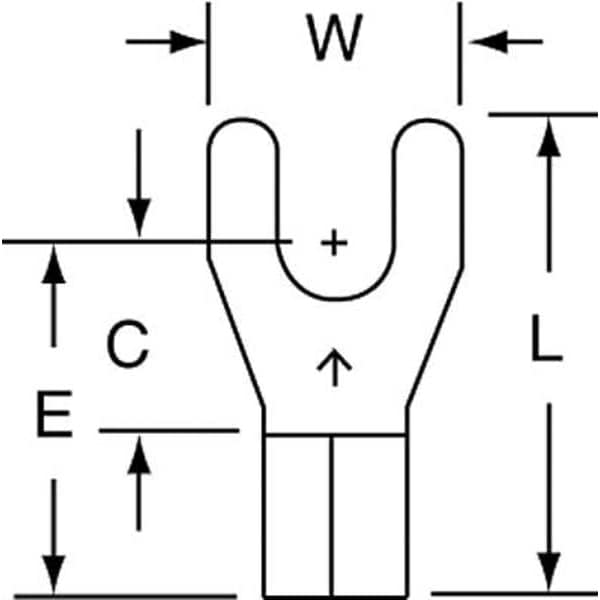

| Clearance (C) | 0.28 in |
| Fork Type | High Temp |
| Dimension E | 0.53 in |
| Barrel Inside Diameter | 0.135 in |
| Package Quantity | 500 |
