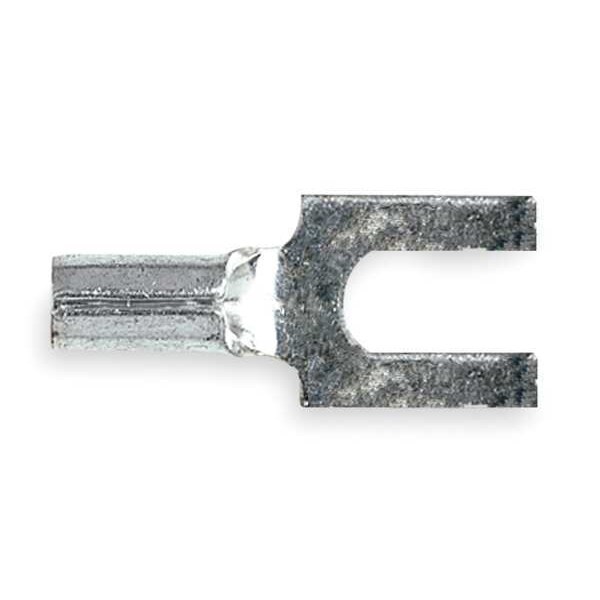

El Terminal de lengüeta no aislado 12-10 AWG #8 Stud PK50 de 3M es ideal para conexiones seguras en aplicaciones eléctricas. Fabricado con materiales de alta calidad y durabilidad.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Max. Temp. | 347 deg F |
| Connection Material | Copper |
| Connection Type | Crimp |
| Standards | CSA Certified, UL Listed |
| Overall Length | 0.73 in |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.38 in |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Item | Fork Terminal |
| Seam | Brazed |
| Maximum Operating Temperature | 347 deg F |
| Barrel Length | 1/4 in |
| Seam Style | Brazed |
| Maximum Wire Size | 10 AWG |
| Insulation Material | None |
| Minimum Wire Size | 12 AWG |
| RoHS Compliant | Yes |
| Tongue Thickness | 0.04 in |
| Terminal Shape | Fork |
| Maximum Voltage | 600 V |
| Contact Material | Copper |
| Tongue Width | 0.38 in |
| Insulation Coverage | None |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Package Quantity | 50 |
